When you head into remote areas, the drawbar, coupling, and chassis are the last things you want to fail — and the hardest things to recover from if they do.
Unlike appliance issues, structural failures don’t give much warning and usually happen under load, on corrugations, or far from help.
This guide explains how to inspect the critical structural components of your caravan before remote travel, what wear and damage actually matter, and when to stop and seek professional advice.
What You’ll Learn
- Why drawbar, coupling, and chassis checks are critical for remote travel
- Common failure points on caravans
- How to inspect for cracks, fatigue, and loose fasteners
- What is acceptable wear vs serious risk
- When professional inspection is essential
This guide is suitable for all caravan owners, especially those planning off-grid or remote trips.
Why Structural Checks Matter Before Remote Travel
Remote travel places extreme stress on caravans due to:
- Corrugations and vibration
- Increased tow loads
- Chassis flex and torsion
- Long distances without support
Minor issues near home can become catastrophic failures in remote areas.
Step-by-Step: Inspecting Drawbars, Couplings and Chassis

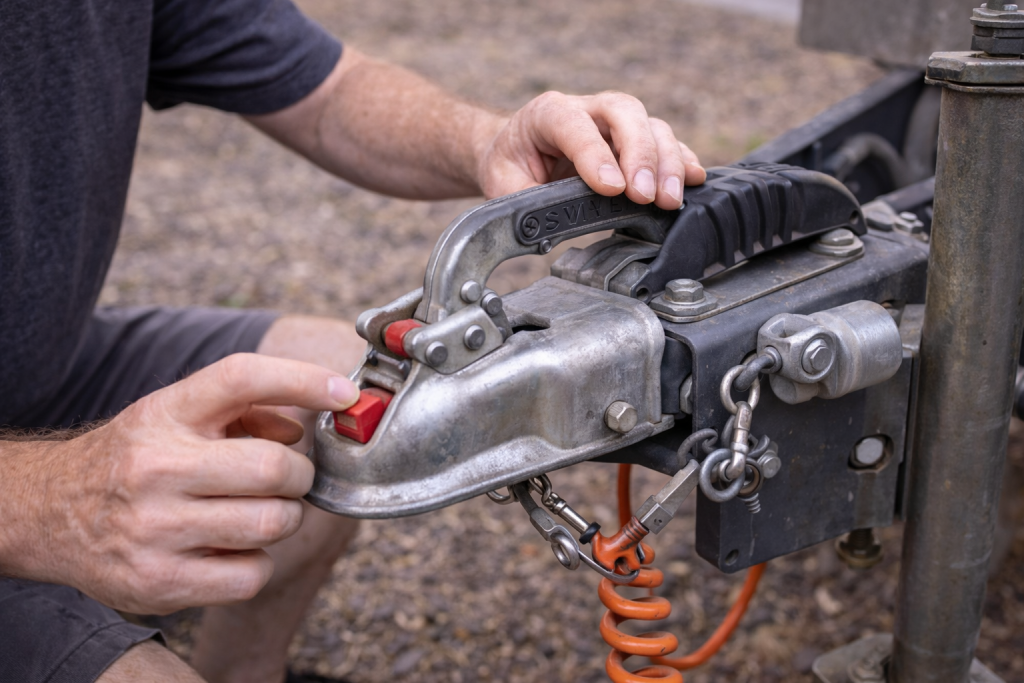

1. Inspect the Tow Coupling
Start at the very front.
Check:
- Excessive play in the coupling
- Cracks in the housing
- Worn locking mechanisms
- Correct operation of latches and pins
If the coupling doesn’t feel tight and positive, it’s a problem.

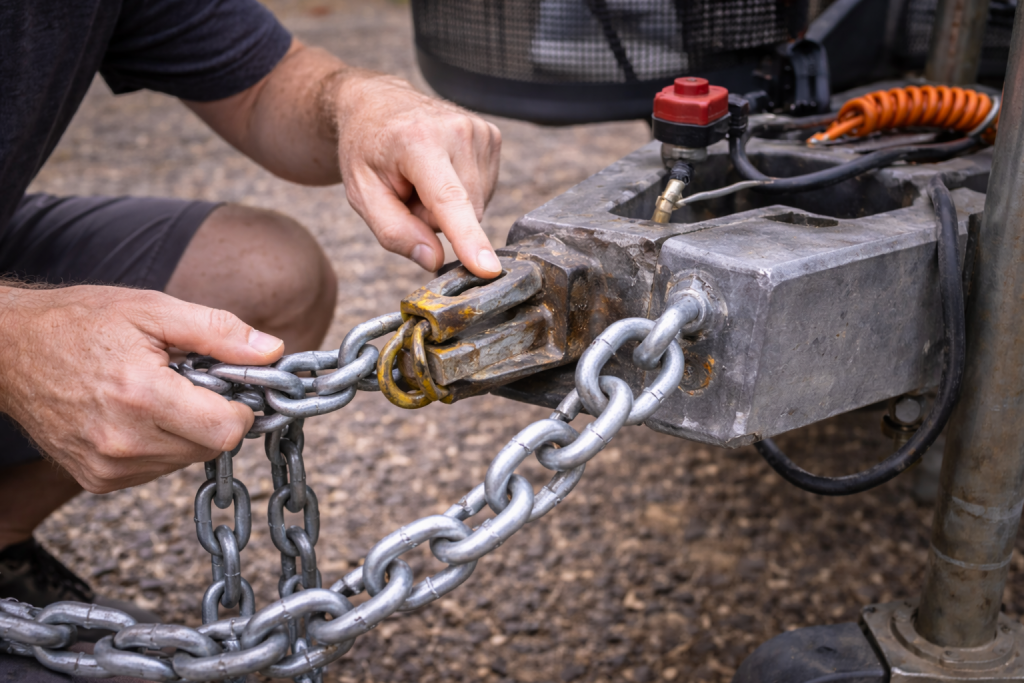

2. Check Safety Chains and Attachment Points
Safety chains are your last line of defence.
Inspect:
- Chain condition and rating
- Welds where chains attach to the drawbar
- Signs of cracking or elongation
Chains must be securely welded — bolted chains are not acceptable for most setups.

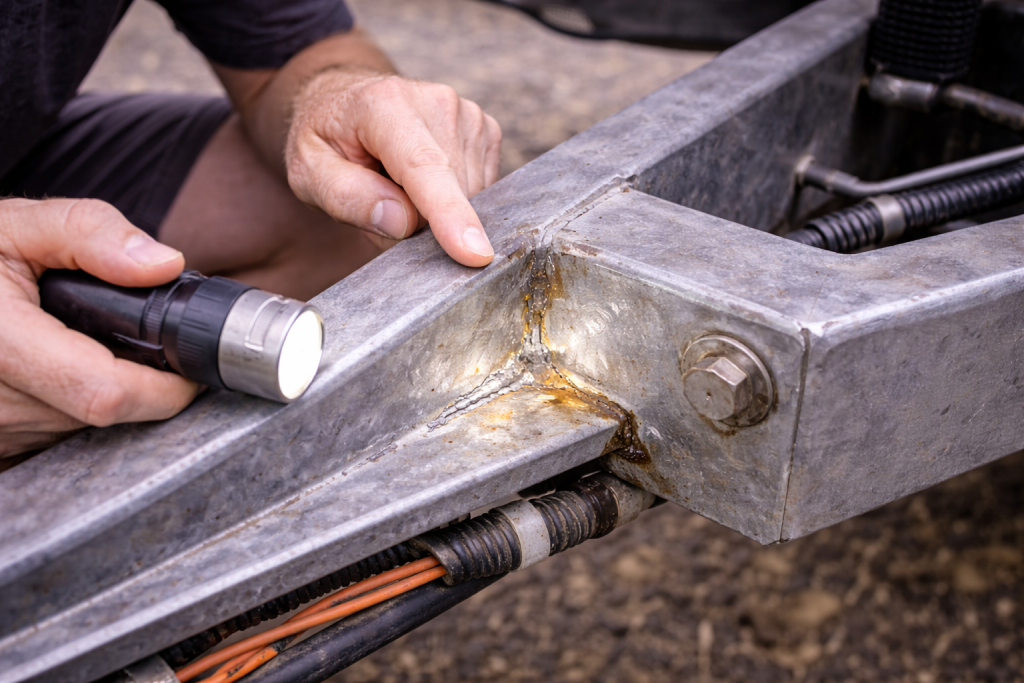

3. Inspect the Drawbar Thoroughly
The drawbar takes huge loads.
Look closely for:
- Hairline cracks near welds
- Rust at joints and overlaps
- Distortion or bending
- Fresh paint cracking (often hides cracks)
Pay special attention where the drawbar meets the main chassis rails.

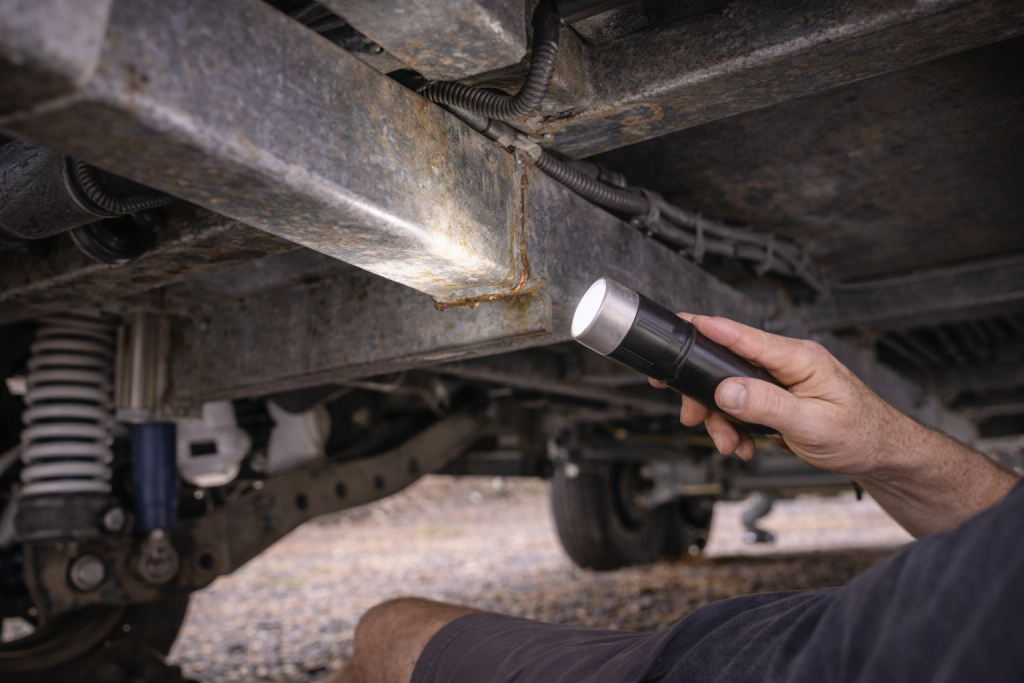

4. Inspect the Chassis Rails and Cross Members
Move underneath the caravan.
Check:
- Main chassis rails
- Cross members
- Suspension mounting points
- Evidence of impact damage
Cracks often start near suspension mounts and propagate outward.
5. Check Bolts, Fasteners, and Mounting Points
Vibration loosens fasteners over time.
Inspect:
- Suspension bolts
- Coupling bolts (if applicable)
- Water tank mounts
- Spare wheel carriers
Look for shiny metal or movement — both indicate loosening.
6. Look for Signs of Fatigue or Past Repairs
Warning signs include:
- Re-welded areas
- Added plates or gussets
- Mismatched paint
- Uneven corrosion
Past repairs aren’t always bad — hidden or poorly done ones are.
Common Red Flags That Should Stop Remote Travel
Do not proceed if you find:
- Cracks in the drawbar or chassis
- Deformed or bent structural members
- Loose or cracked coupling housings
- Broken welds
- Severe corrosion
These issues worsen rapidly off-road.
Common Mistakes to Avoid
- Assuming “it’s fine because it’s heavy”
- Ignoring hairline cracks
- Painting over rust without repair
- Skipping underside inspections
- Relying on last year’s inspection
Structural checks should be done before every major remote trip.
How Often Should These Inspections Be Done?
Recommended:
- Before any remote or off-grid trip
- After long corrugated-road travel
- Annually at minimum
- Immediately after impacts or incidents
Remote travel accelerates wear dramatically.
When to Call a Professional
Professional inspection is strongly recommended if:
- You plan extended remote travel
- The caravan is older or heavily modified
- Any cracks or repairs are found
- Suspension or chassis upgrades are fitted
Structural repairs require certified welding and assessment.
Key Takeaways
- Drawbar and chassis failures are trip-ending
- Cracks often start small and hidden
- Corrugations amplify structural stress
- Visual inspection catches most issues early
- Remote travel demands higher standards
