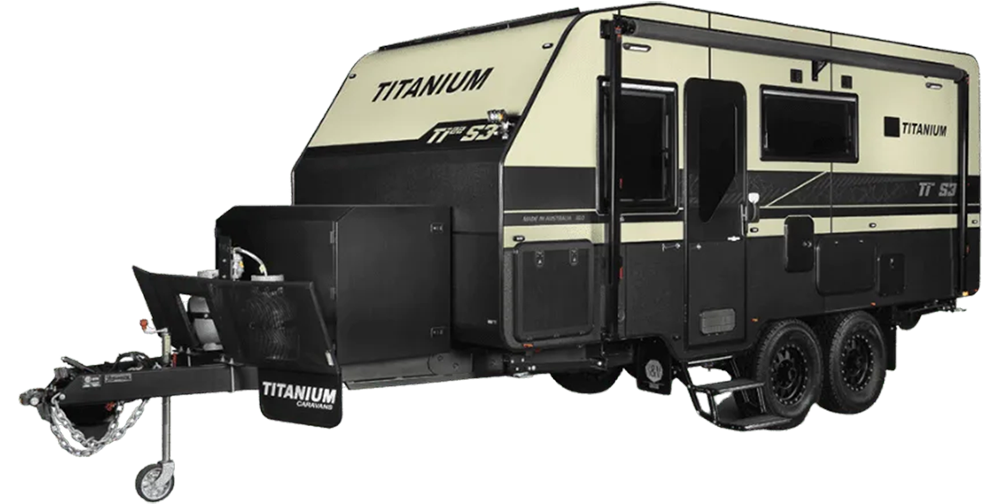

Ti22 S3
Engineered for off-grid adventures, providing the durability and features needed to explore Australia’s hidden gems. With its rugged design, superior build quality, and self-sufficient power system, the S3 ensures you can stay off the beaten path longer while enjoying the comforts of home.
Chassis
- Painted Supergal Chassis
- Single axle only
- 4”x 4” Chassis
- Extended ‘A’ frame for maximum storage
- Cruisemaster DO35V3 coupling with integrated handbrake
- 8” Adjustable jockey wheel
- Aluminium pull out step
- Drop down stabilizer legs
- 2 x Rear recovery points
- 16” Method Race Wheels
- Yokohama Geolandar G015 A/T 285/75R16 tyres
- Cruisemaster XT coil suspension up to 3,500KG
- Disc brakes
- Large aluminium toolbox on A-frame
- Stone deflector
- Poly honeycomb insulated light weight flooring
- Jack and wheel brace
Interior
- Black internal grab handle at entry
- Fire extinguisher
- Pillow top mattress
- 3-Way interlocking CNC cabinetry throughout
- Slimline soft close drawer runner system
- Drawers under bunk beds (double bunks only)
- Mirrored medicine cabinet (layout dependent)
- Telescopic table leg (layout dependent)
- Modern benchtops
- Acrylic splashback
- Ceramic vanity basin
- Black granite kitchen sink
- 2 x black towel rails
Exterior
- Interlocking aluminium Henrob riveted wall frames
- One piece fibreglass composite roof panel 30mm
- Under body protection
- 4 Arm rear bumper bar
- Spare wheel and carrier
- Largest awning to fit
- Double glazed tinted windows
- Triple compression locking entry door with security screen
- Full width chequer plate lined tunnel boot
- Coast to Coast access doors
- External entertainment hatch
- Fold down picnic table
- Premium S3 vinyl decals
- Textured External flat plate
- PIR Insultation
- 2 x 700mm x 500mm Roof hatches
- 12V Shower hatch with fan
Electrical
- Enerdrive RV80-02 battery management system
- 2 x 200AH Enerdrive B-TEC lithium batteries
- 2600W inverter
- 4 x 200W solar panels
- 40A DC2DC+ charger
- 40A A/C charger
- Epro plus battery monitor
- 12 Pin trailer plug
- 50A grey anderson plug – vehicle charge
- 50A red anderson plug – portable solar charge
- 50A blue anderson plug – 12V output power
- Dual lense reverse camera
- Front & rear Stedi work lights
- 2 x anti-dazzle annex lights
- LED external lighting
- 2 x LED lights in tunnel boot
- External LED grab handle
- TV antenna
- Starlink ready
- LED downlights throughout
- LED reading lights throughout
- USB & USB-C throughout
- 240V power outlets throughout
- LED sink light
- Black Sirocco fan
- Smoke detector
- 2 x internal speakers
Plumbing
- 85L Poly rotomolded water tank exclusive to Titanium
- 160L Poly rotomolded water tank exclusive to Titanium
- 85L Grey water tank
- Water level gauge
- 12V Water pump
- Quick fill water inlet manifolds
- Water tap on A-frame
- Mains pressure inlet
- Gas bayonet
- 2 x 9KG Gas bottles
- Gas and electric hot water service
- Modern matte black tapware throughout
- Thetford ceramic bowl toilet
- Fibreglass shower
*Please note the following layouts have the following changes to the specs
All Bunk Vans 3.2KG Front Load Washer
Items used in display caravans or listed on brochure may not be available when producing customer orders,
in this case alternate product may be required to be used.
All Products will be of acceptable standards and will perform as required.
Specs may be subject to change, refer to stock unit on display.

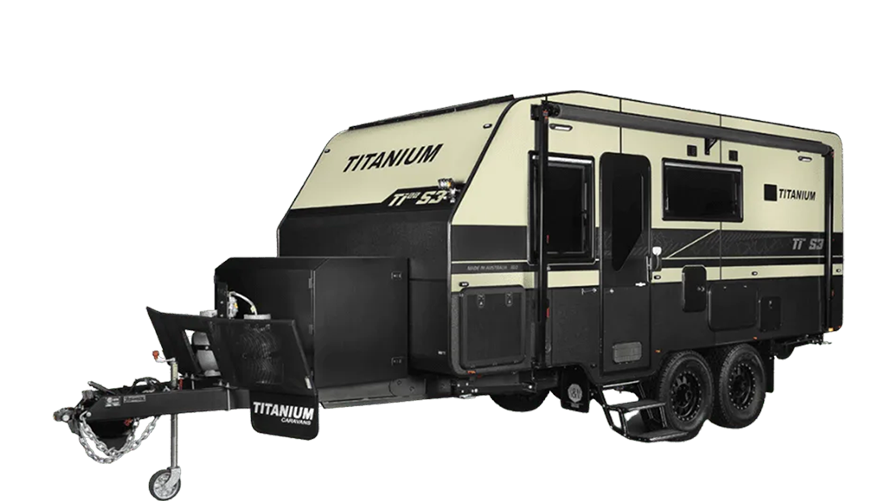

The Titanium Caravans Ti22 S3 is built for off-road excellence, offering a rugged and capable design that is ready to tackle any terrain. Its 6-inch A-frame, 4X4 chassis, and Cruisemaster XT coil suspension, combined with a 4-inch chassis raiser, ensure it can handle the toughest conditions. The interlocking Henrob riveted aluminium frame and seamless one-piece roof system provide exceptional durability, making it resistant to stones, hail, and the intense Australian sun. Equipped with 600 watts of solar power, a 245-litre water storage system in Australian-made custom poly tanks, and ample battery power, the S3 ensures self-sufficiency for remote adventures. Disc brakes add an extra layer of safety, making the S3 the perfect companion for any off-road journey.
interior
Inside, the Titanium Caravans Ti22 S3 is designed for comfort, convenience, and practicality. With smart storage solutions and a layout optimized for extended stays, the S3 offers everything you need for a successful off-grid adventure. The caravan combines rugged toughness with the amenities of home, so you can relax and enjoy your travels. Proudly built in Australia with locally sourced components, the S3 also comes with Titanium’s trusted factory warranty, ensuring reliability and peace of mind for your travels through the Australian outback.
Floor Plans

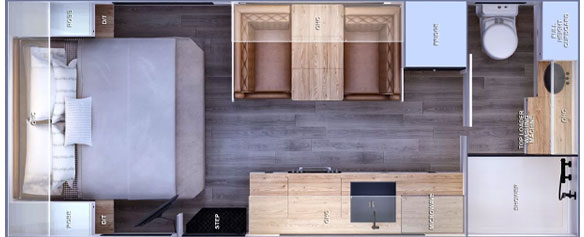

188FD
18’8 Front Door

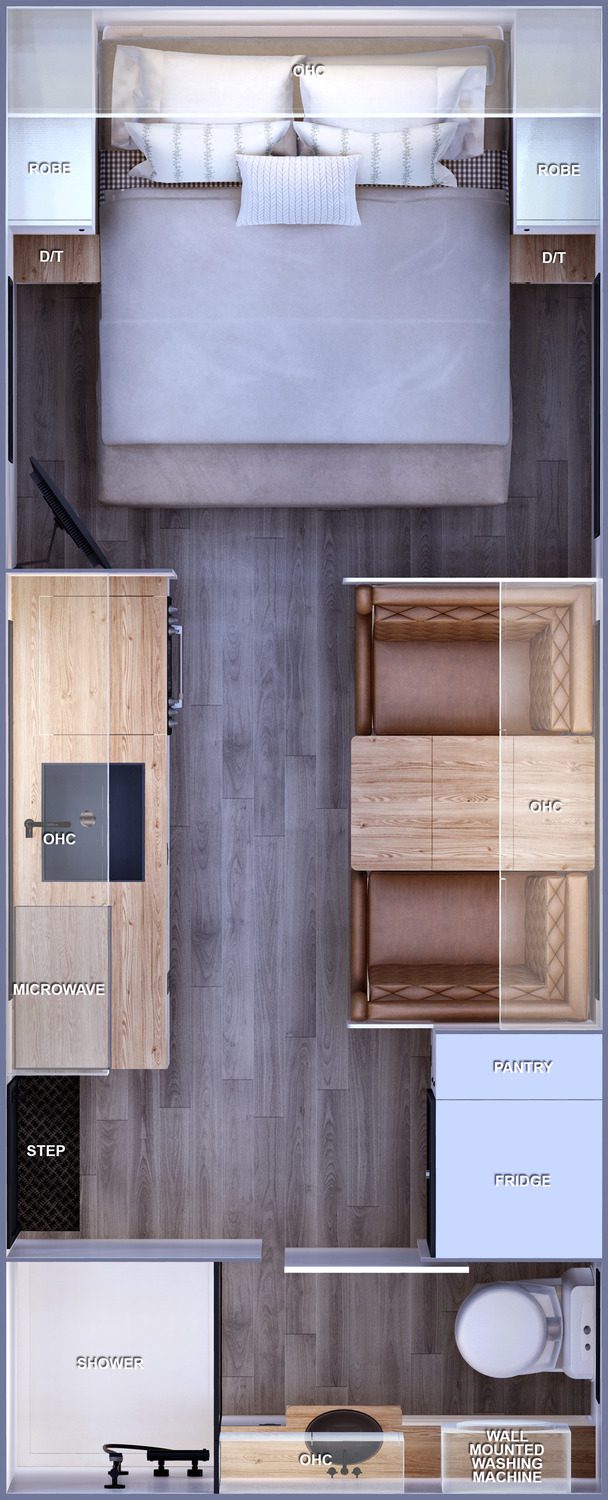

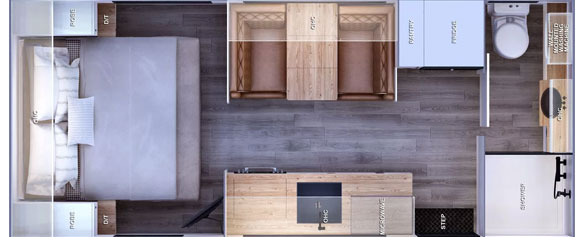

188RD
18’8 Rear Door

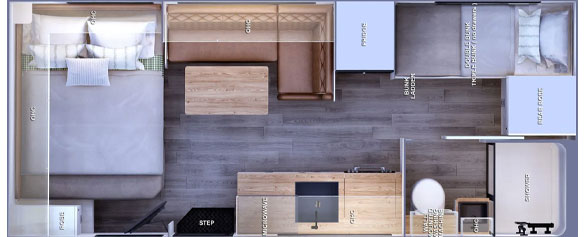

196D/T
19’6 Queen East-West Bunk

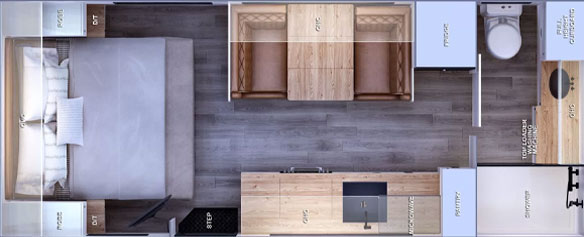

196FD
19’6 Front Door

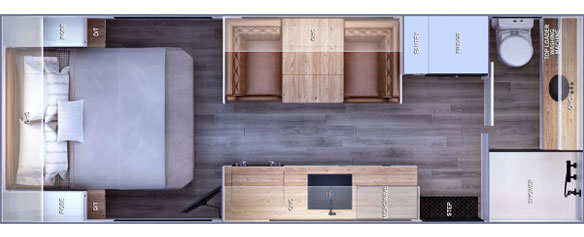

196RD
19’6 Rear Door

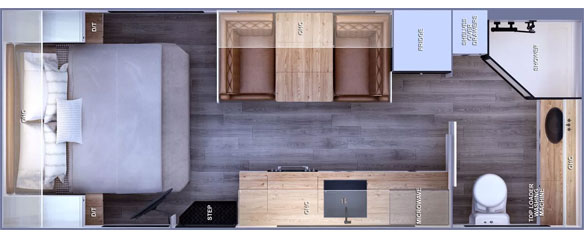

20FD
20′ Front Door

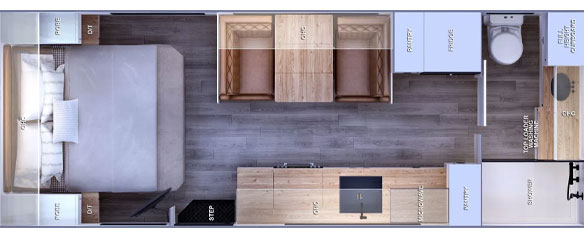

206FD
20’6 Front Door

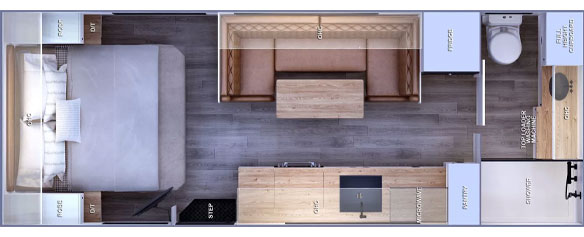

206FDCL
20’6 Front Door Club Lounge

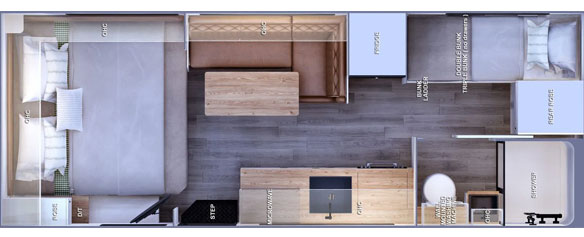

206KBD/T
20’6 King Bunk

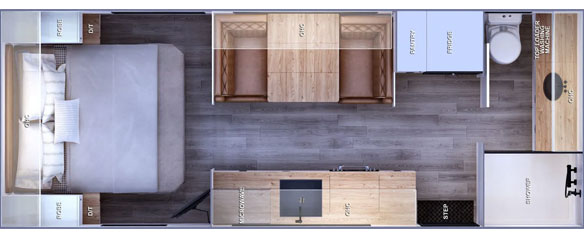

206RD
20’6 Rear Door

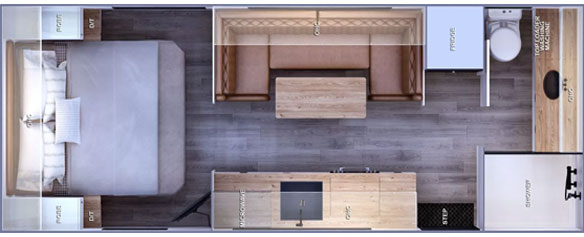

206RDCL
20’6 Rear Door Club Lounge

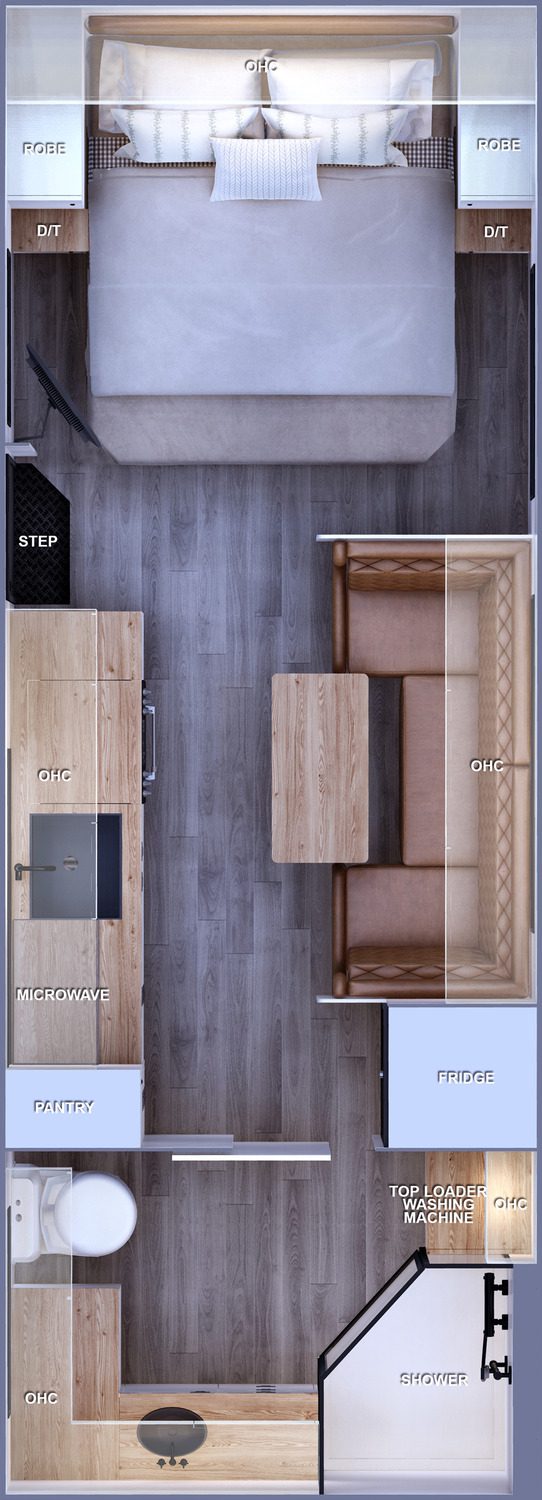

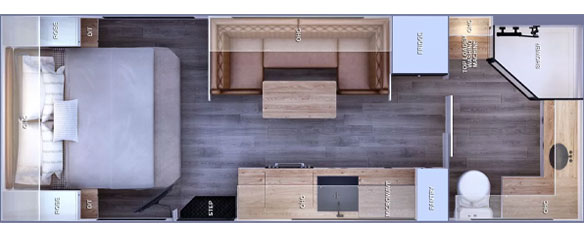

21FD
21′ Front Door

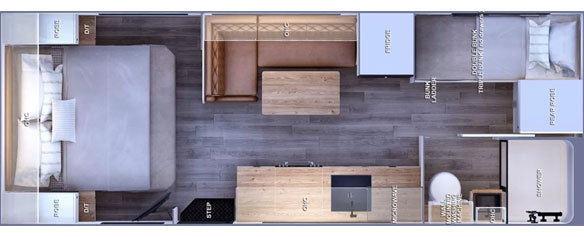

216D/T
21’6 Queen Island Bunk

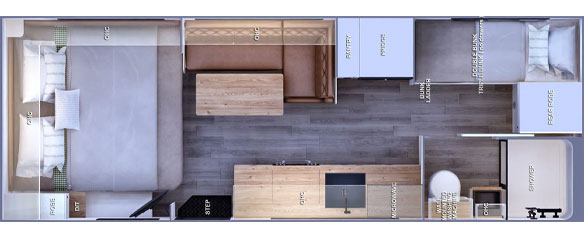

216KBD/T
21’6 King Bunk

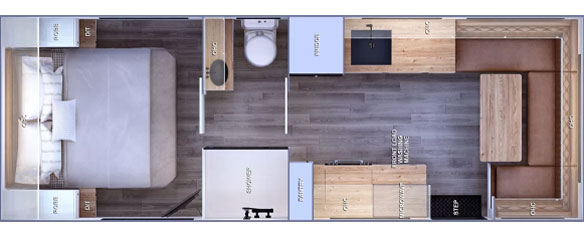

216RCL
21’6 Rear Club Lounge

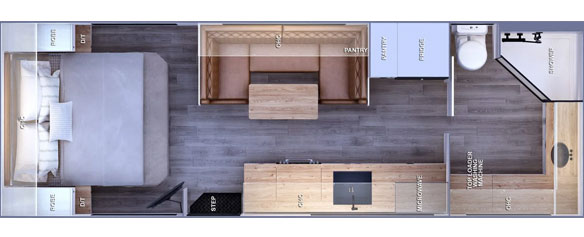

226CL
22’6 Club Lounge Ensuite

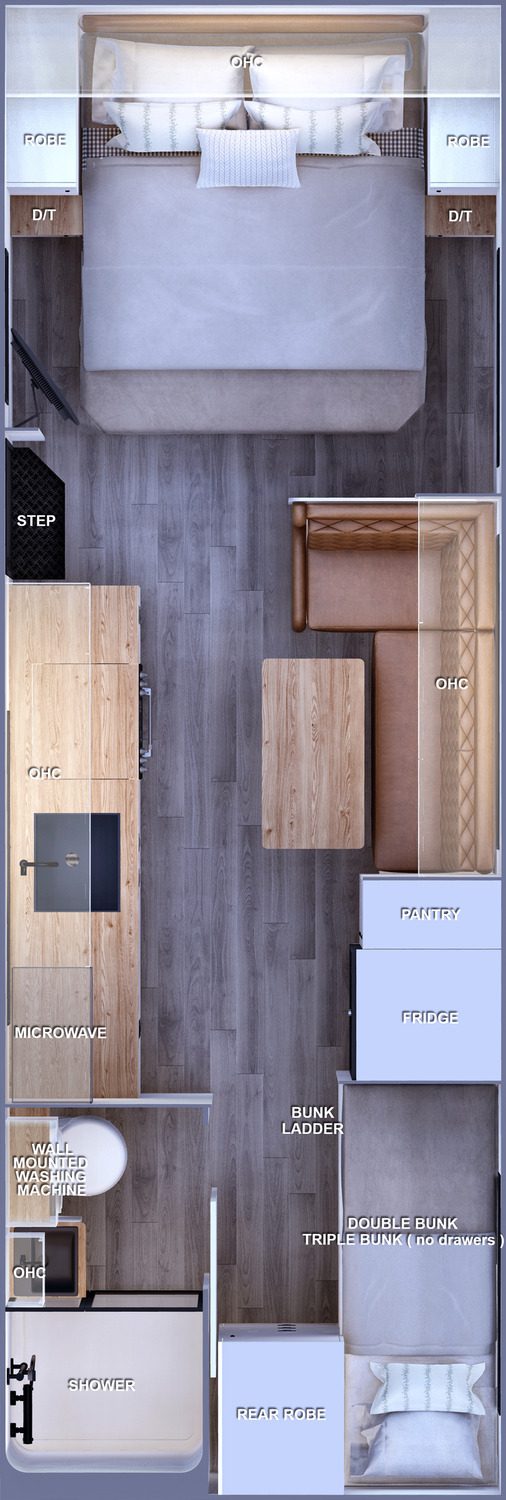

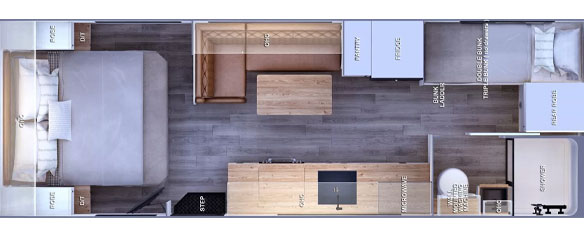

226D/T
22’6 Queen Island Bunk

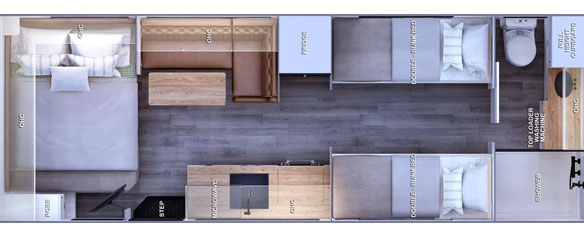

226Q
22’6 Quad Bunk

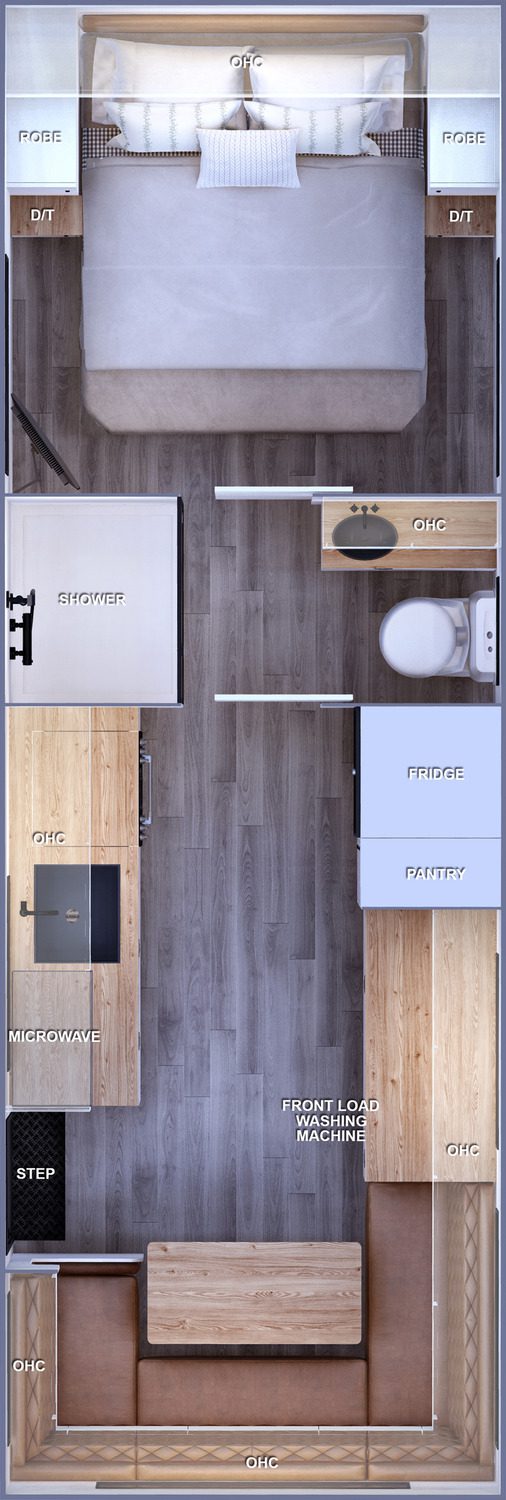

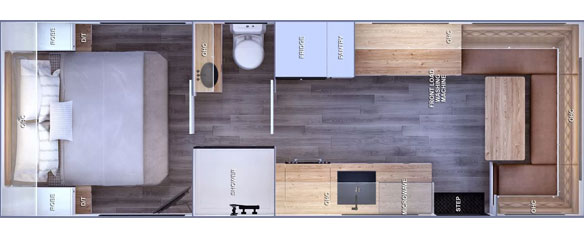

226RCL
22’6 Rear Club Lounge
23D/T
23′ Queen Island Bunk

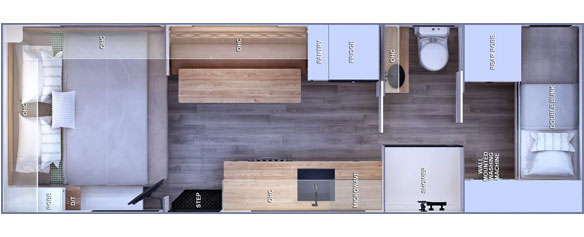

23RBD/T
23′ Rear Bunk King Bed

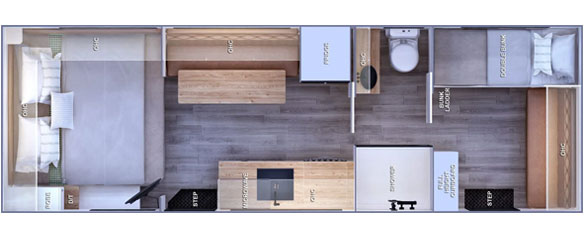

236DED/T
23’6 Rear Bunk Double Entry
