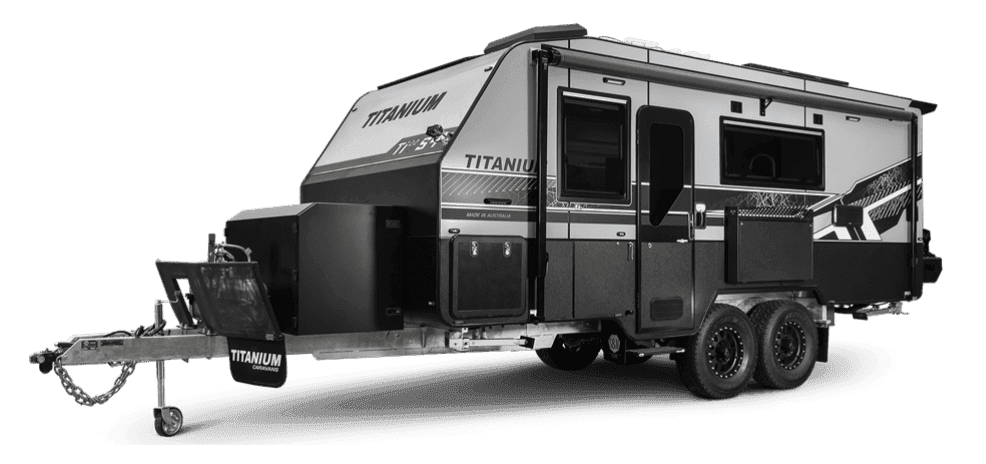

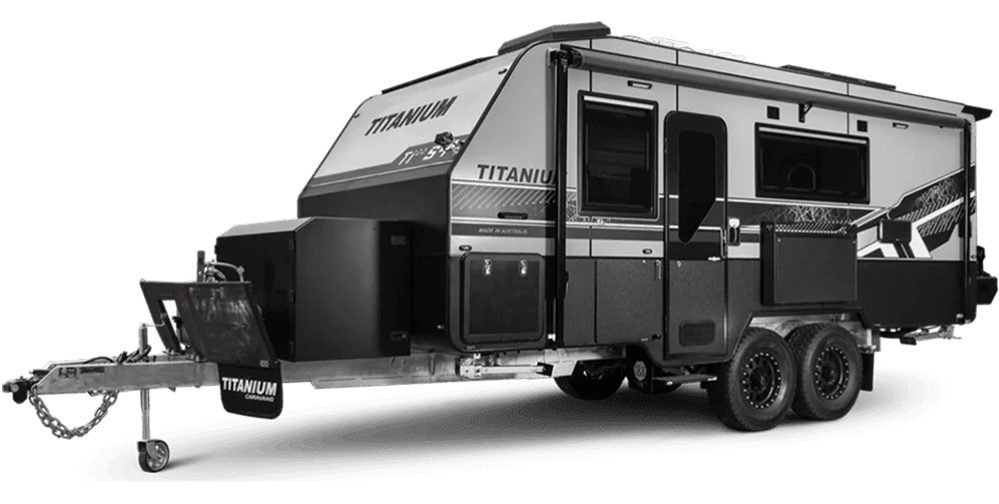

Ti22 S4
The ultimate off-road caravan for true adventurers. Packed with all the rugged features you need for exploring Australia’s toughest terrains, the S4 delivers unmatched durability and self-sufficiency, ensuring your off-grid journeys go uninterrupted.
Chassis Specifications
Interior Specifications
Exterior specifications
Electrical Specifications
Plumbing Specifications
Chassis Specifications
- Hot Dipped Galvanised Chassis
- Tandem axle only
- 4”x 4” Chassis
- Extended ‘A’ frame for maximum storage
- Cruisemaster DO45 Plus coupling with integrated handbrake and 4.5T safety chains
- 8” Adjustable jockey wheel
- Aluminium pull out step
- Drop down stabilizer legs
- 2 x Rear recovery points
- 16” Method Race Wheels
- Yokohama Geolandar G015 A/T 285/75R16 tyres
- Level 3 wireless Cruisemaster ATX airbag suspension
- Deemax calipers and 2 piece ventilated brake rotors
- Stone deflector
- Poly honeycomb insulated light weight flooring
- Jack and wheel brace
Interior Specifications
- Black internal grab handle at entry
- Fire extinguisher
- Pillow top mattress
- Full height upholstered bed head with pockets
- 3-Way interlocking CNC cabinetry throughout
- Slimline soft close drawer runner system
- Drawers under bunk beds (double bunks only)
- Mirrored medicine cabinet (layout dependent)
- Telescopic table leg (layout dependent)
- Modern benchtops
- Acrylic splashback
- Ceramic vanity basin
- Black granite kitchen sink
- 2 x black towel rails
Exterior specifications
- Interlocking aluminium Henrob riveted wall frames
- One piece fibreglass composite roof panel 30mm
- TB68 Super Toolbox
- Titanium high front shape
- Exclusive Titanium rear bar with spare wheel carrier, wood box, dual jerry can holders & slide out drawer
- Exclusive Titanium slide out kitchen with gas cook top
- Largest awning to fit
- Dometic double glazed tinted CHAL windows
- Triple compression locking entry door with security screen
- Full width chequer plate lined tunnel boot
- Coast to Coast access doors
- External entertainment hatch
- Fold down picnic table
- Premium S4 vinyl decals
- Textured External flat plate
- PIR Insultation
- 2 x 700mm x 500mm Roof hatches
- 12V Shower hatch with fan
Electrical Specifications
- Enerdrive esys-t-ep-02 battery management system (behind fridge)
- 2 x 300AH Enerdrive B-TEC lithium batteries
- 2600W Enerdrive true sine wave inverter with ac transfer & safety switch
- 1000W of solar (configuration depends on roof design)
- 40A DC2DC+ charger
- 60A A/C charger
- Dual 40A MPPT solar controller
- Epro plus battery monitor
- 12 Pin trailer plug
- 50A grey anderson plug – vehicle charge
- 50A red anderson plug – portable solar charge
- 50A blue anderson plug – 12V output power
- Dual lense reverse camera
- Front & rear Stedi work lights
- Anti-dazzle annex lights
- LED external lighting
- 2 x LED lights in tunnel boot
- External LED grab handle
- TV antenna
- Starlink ready
- LED downlights throughout
- LED reading lights throughout
- USB & USB-C throughout
- 240V power outlets throughout
- LED strip lighting in shadow line above overheads
- LED sink light
- 2 x black Sirocco fans
- Smoke detector
- 2 x internal speakers
- 1 x external speaker
Plumbing Specifications
- 160L Poly rotomolded water tank exclusive to Titanium
- 85L Exclusive poly rotomoulded water tank
- 85L Grey water tank
- Water level gauge
- 12V Water pump
- Quick fill water inlet manifolds
- External Shower
- Water tap on A-frame
- Mains pressure inlet
- 2 x Gas Bayonets
- 2 x 9KG Gas bottles
- Gas and electric hot water service
- Modern matte black tapware throughout including 3-Way filtered flick mixer
- Thetford ceramic bowl toilet
- Fibreglass shower

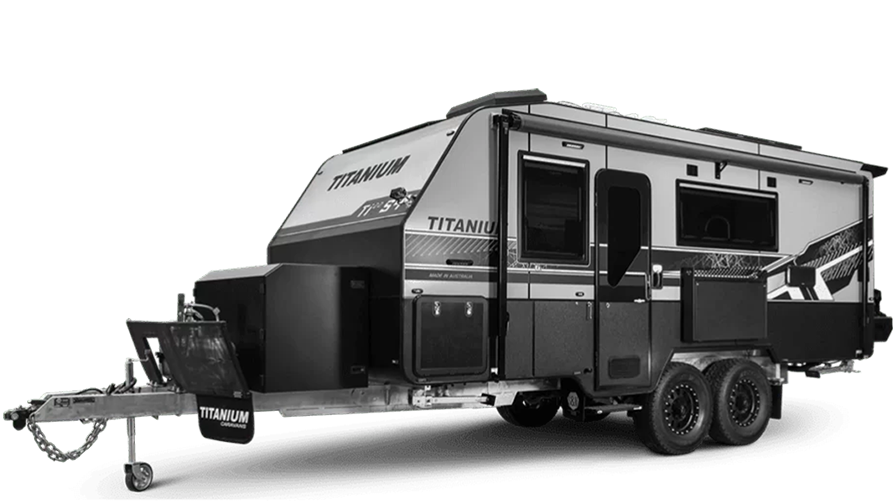

Exterior
The Titanium Caravans Ti22 S4 is designed for hardcore off-road enthusiasts, combining aggressive looks with an unbeatable build. Featuring a 6-inch A-frame, a galvanised 4X4 chassis, and S4 Level 3 wireless airbag suspension, it’s built to handle Australia’s most challenging terrains. The Deemax disc brakes, interlocking Henrob riveted aluminium frame, and seamless one-piece roof system make the S4 a true off-road powerhouse. Whether facing stones, hail, or the scorching sun, the S4 will endure it all with ease. Equipped with 800 watts of solar power, 400 amps of lithium battery storage, and 245 litres of water in Australian-made poly tanks, you have the power and resources to venture deep into the wilderness. The addition of Enerdrive’s BMS and 60amp AC charger ensures you’re set for long off-grid stays, taking you anywhere your 4WD can go.
interior
Inside, the Titanium Caravans Ti22 S4 is thoughtfully designed to provide comfort and practicality during long off-road trips. Smart storage solutions and a well-appointed layout make the most of the available space, ensuring you have everything you need for a comfortable stay in remote locations. With all the essentials for extended off-grid adventures, the S4 brings together rugged durability with home-like conveniences. Proudly manufactured in Australia with Australian-made components, the S4 is backed by Titanium’s trusted factory warranty, giving you peace of mind as you explore Australia’s most rugged landscapes.
Floorplans
18’8 Front Door (188FD)
18’8 Rear Door (188RD)
19’6 Queen East-West Bunk (196D/T)
19’6 Front Door (196FD)
19’6 Rear Door (196RD)
20′ Front Door (20FD)
20’6 Front Door (206FD)
20’6 Front Door Club Lounge (206FDCL)
20’6 King Bunk (206KBD/T)
20’6 Rear Door (206RD)
20’6 Rear Door Club Lounge (206RDCL)
21′ Front Door (21FD)
21’6 Queen Island Bunk (216D/T)
21’6 King Bunk (216KBD/T)
21’6 Rear Club Lounge (216RCL)
22’6 Club Lounge Ensuite (226CL)
22’6 Queen Island Bunk (226D/T)
22’6 Quad Bunk (226Q)
22’6 Rear Club Lounge (226RCL)
23′ Queen Island Bunk (23D/T)
23′ Rear Bunk King Bed (23RBD/T)
