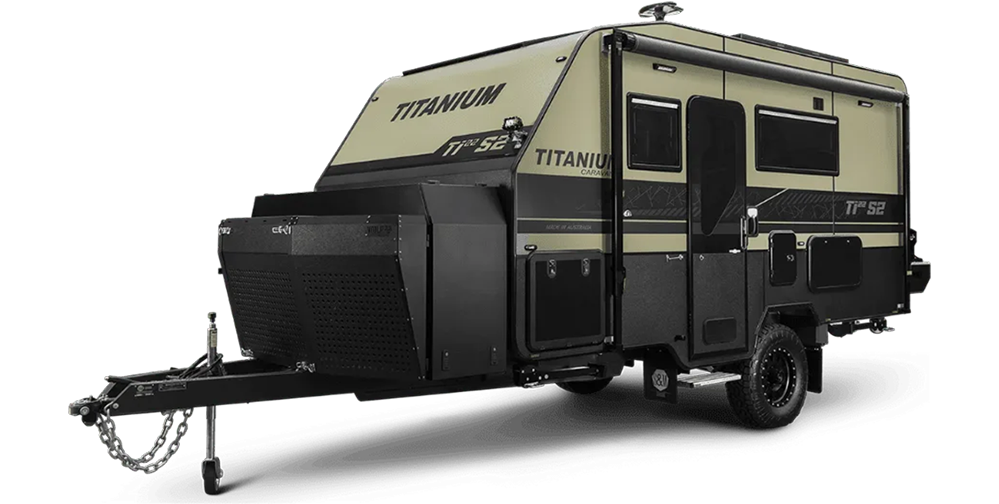

Ti22 S2
The perfect blend of rugged capability and practical functionality. Its compact design and tough build, combined with advanced features, make it ready for any remote adventure, whether it’s off-road exploration or navigating harsh Australian conditions.
Chassis Specifications
Interior Specifications
Exterior specifications
Electrical Specifications
Plumbing Specifications
Chassis Specifications
- Painted Supergal Chassis
- Single axle only
- 4”x 4” Chassis
- Extended ‘A’ frame for maximum storage
- Cruisemaster DO35V3 coupling with integrated handbrake
- 8” Adjustable jockey wheel
- Aluminium pull out step
- Drop down stabilizer legs
- 16” Method Race Wheels
- Yokohama Geolandar G015 A/T 265/75R16 tyres
- Cruisemaster XT coil suspension up to 2,800KG
- Deemax callipers and 2 piece ventilated disc brakes
- Stone deflector
- Large aluminium toolbox on A-frame
- Poly honeycomb insulated light weight flooring
Interior Specifications
- Black internal grab handle at entry
- Fire extinguisher
- Pillow top mattress
- 3-Way interlocking CNC cabinetry throughout
- Slimline soft close drawer runner system
- Drawers under bunk beds (layout dependent)
- Mirrored medicine cabinet (layout dependent)
- Telescopic table leg (layout dependent)
- Modern benchtops
- Acrylic splashback
- Ceramic vanity basin
- Black granite kitchen sink
- 2 x black towel rails
Exterior specifications
- Interlocking aluminium Henrob riveted wall frames
- One piece fibreglass composite roof panel 30mm
- Under body protection
- 4 Arm rear bumper bar
- Exclusive Titanium rear bar with spare wheel, wood box and slide out drawer
- Largest awning to fit
- Double glazed tinted windows
- Triple compression locking entry door with security screen
- Full width chequer plate lined tunnel boot
- Coast to Coast access doors
- External entertainment hatch
- Fold down picnic table
- Premium S2 vinyl decals
- Textured External flat plate
- PIR Insultation
- 2 x 700mm x 500mm Roof hatches (layout dependent)
- 12V Shower hatch with fan
- High front
Electrical Specifications
- Enerdrive RV80-02 battery management system
- 1 x 200AH Enerdrive B-TEC lithium battery
- 3 x 200W solar panels
- 40A DC2DC+ charger
- 40A A/C charger
- Epro plus battery monitor
- 12 Pin trailer plug
- 50A grey anderson plug – vehicle charge
- 50A red anderson plug – portable solar charge
- 50A blue anderson plug – 12V output power
- Front & rear Stedi work lights
- LED external lighting
- 2 x LED lights in tunnel boot
- External LED grab handle
- TV antenna
- LED downlights throughout
- LED reading lights throughout
- USB & USB-C throughout
- LED sink light
- Black Sirocco fan
- Smoke detector
- 2 x internal speakers
Plumbing Specifications
- 2 x 85L Poly rotomolded water tanks exclusive to Titanium
- 85L Grey water tank
- Water level gauge
- 12V Water pump
- Quick fill water inlet manifolds
- Water tap on A-frame
- Mains pressure inlet
- Gas bayonet
- 2 x 9KG Gas bottles
- Gas and electric hot water service
- Modern matte black tapware throughout
- Thetford ceramic bowl toilet
- Fibreglass shower

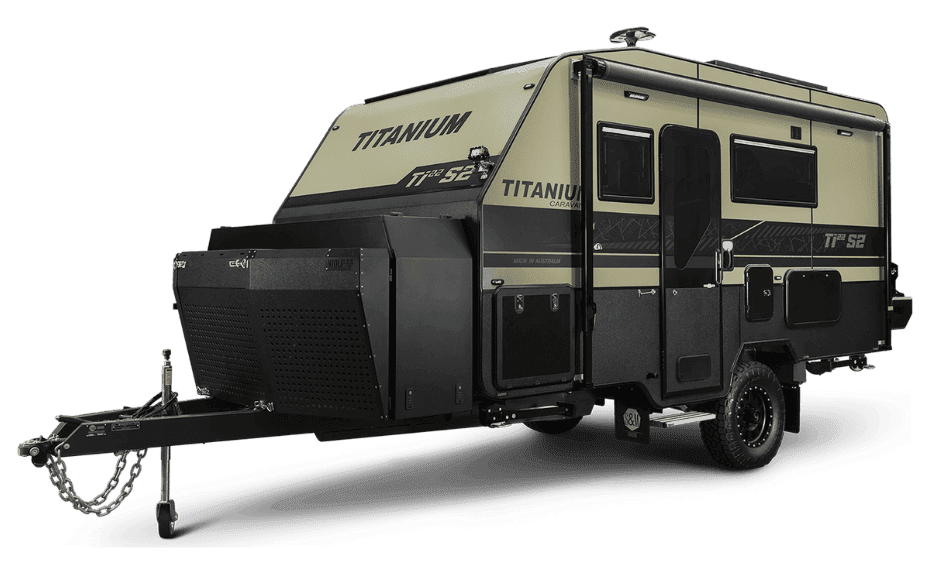

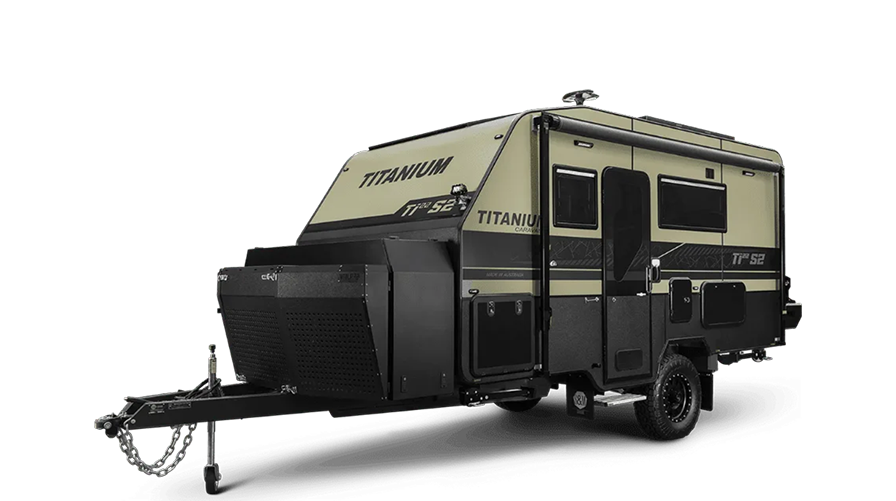

Exterior
The Titanium Caravans Ti22 S2 is built to tackle the toughest off-road challenges with a rugged and compact design. Its 6-inch A-frame with a 4X4 chassis, Cruisemaster XT coil suspension, and a 4-inch chassis raiser make it a tough competitor for any terrain. The interlocking Henrob riveted aluminium frame and one-piece roof system provide the durability needed to endure harsh conditions, from stones and hail to the extreme Australian sun. Equipped with 600 watts of solar power and 200AH Enerdrive lithium battery, it ensures self-sufficiency for long journeys. With 170 liters of water storage in Australian-made poly tanks and 16″ Method Race Wheels with Yokohama all-terrain tires, the S2 is built for adventure, wherever the road takes you.
interior
Inside the Titanium Caravans Ti22 S2, you’ll find all the creature comforts for a long journey, including a full ensuite for added convenience. Despite its compact size, the S2 is packed with practical features and smart storage solutions to make your travels comfortable and organized. With its robust build and thoughtful design, the S2 ensures you can enjoy every adventure without sacrificing comfort, all while being fuel-efficient and easy to tow. Proudly crafted in Australia with Australian-made components, the S2 offers peace of mind, backed by Titanium’s trusted factory warranty.
Floorplans

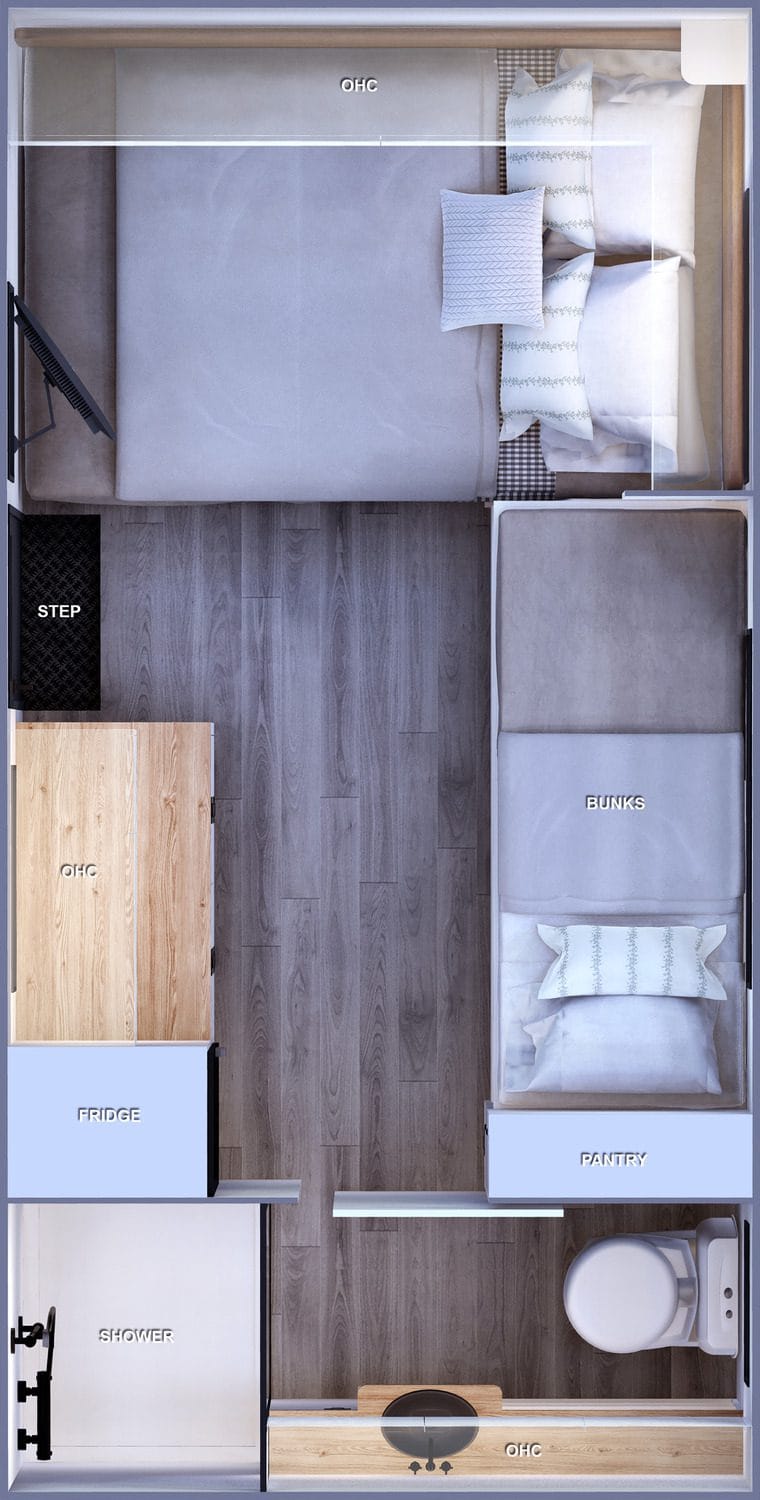

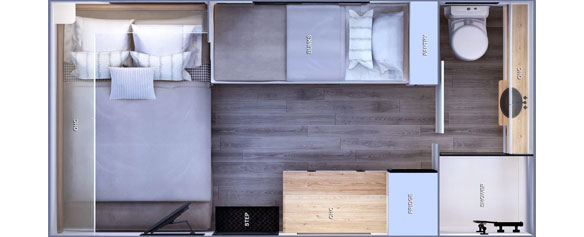

15′ Queen East-West Bunk (15D/T)

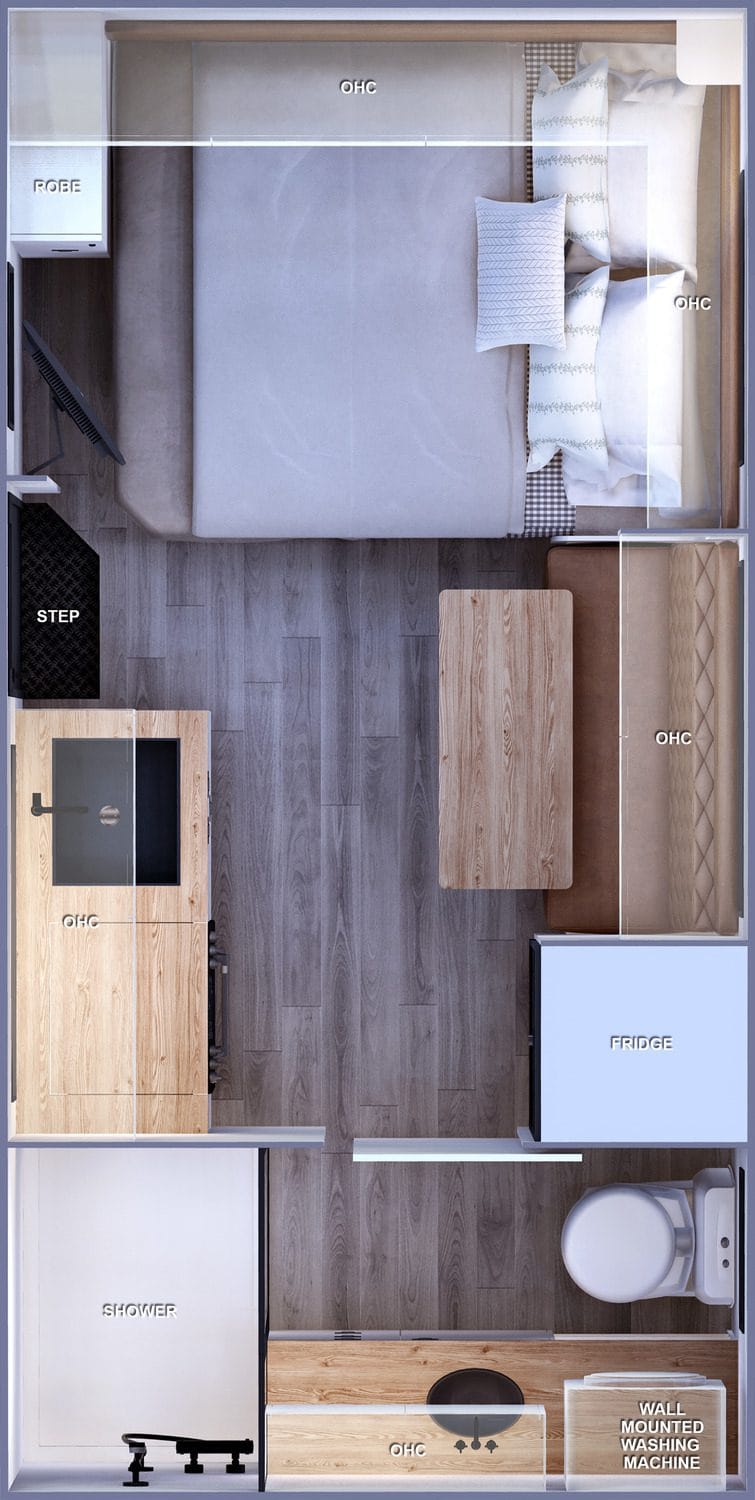

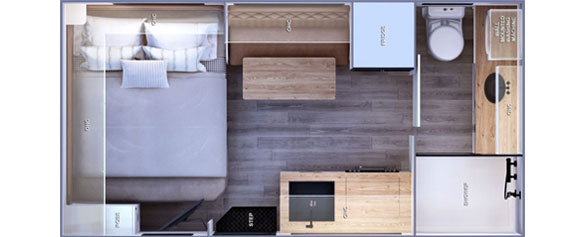

15′ Front Door (15FD)

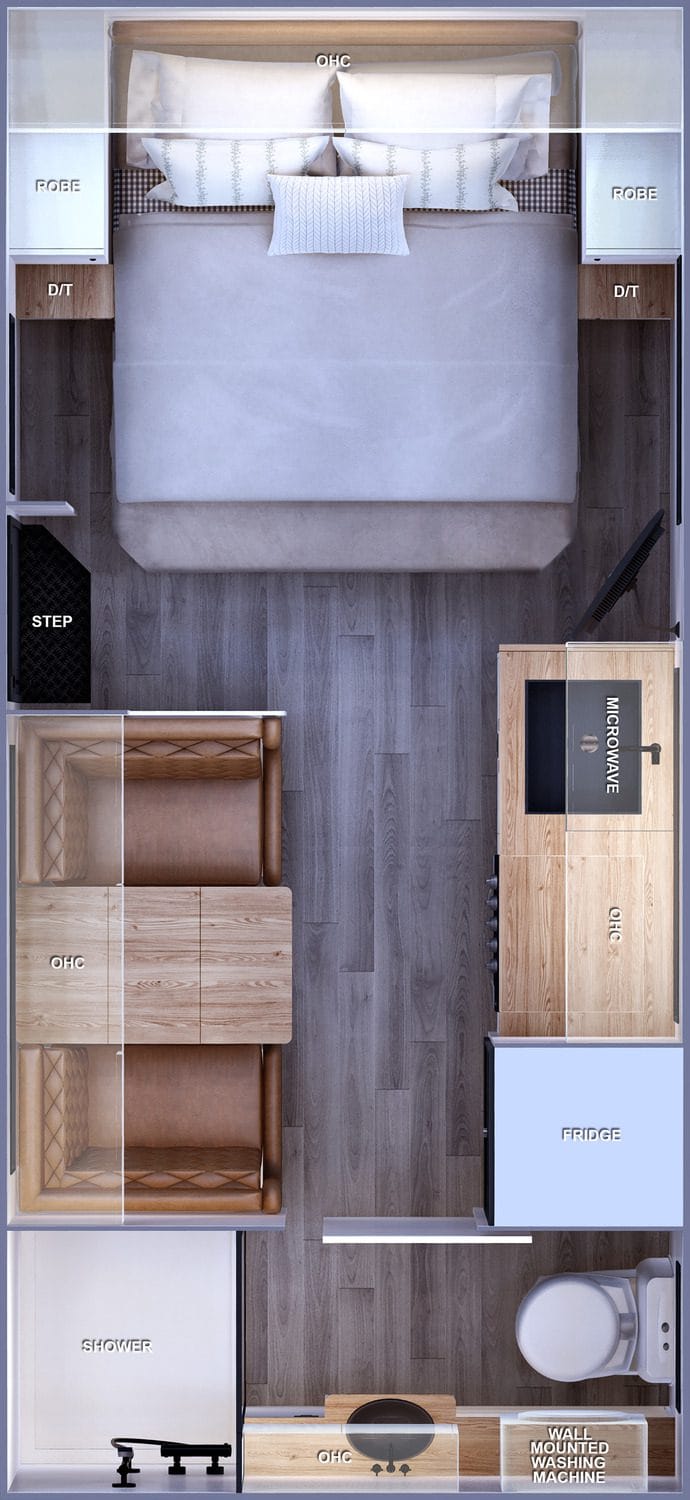

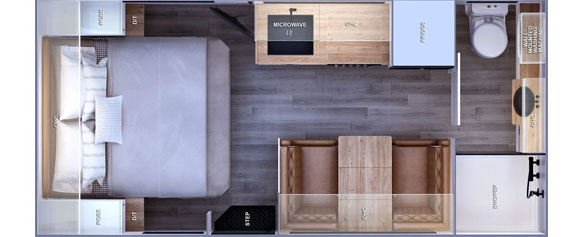

16’6 Front Door (166FD)

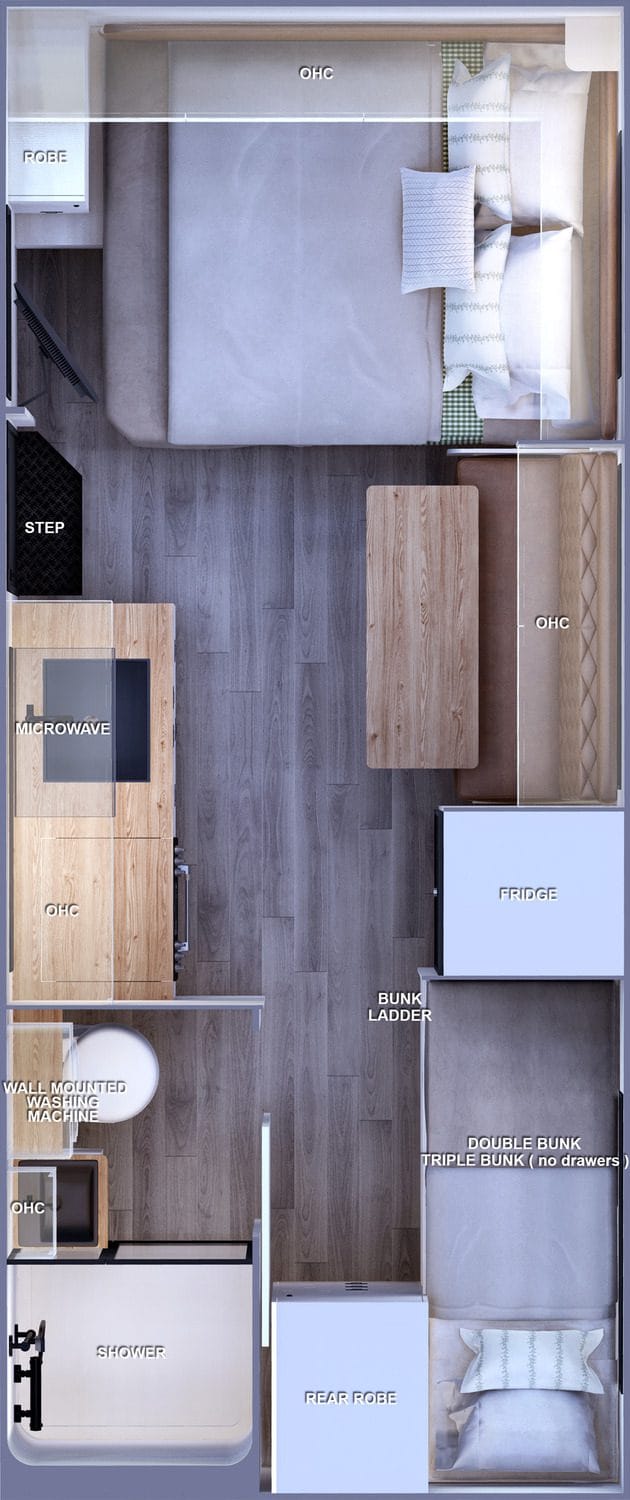

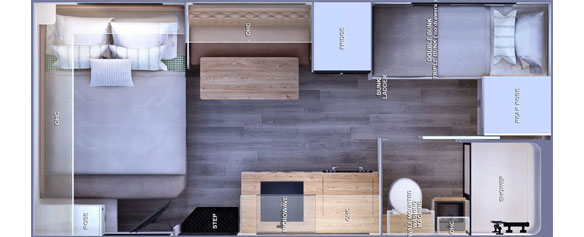

18′ Queen East-West Bunk (18D/T)

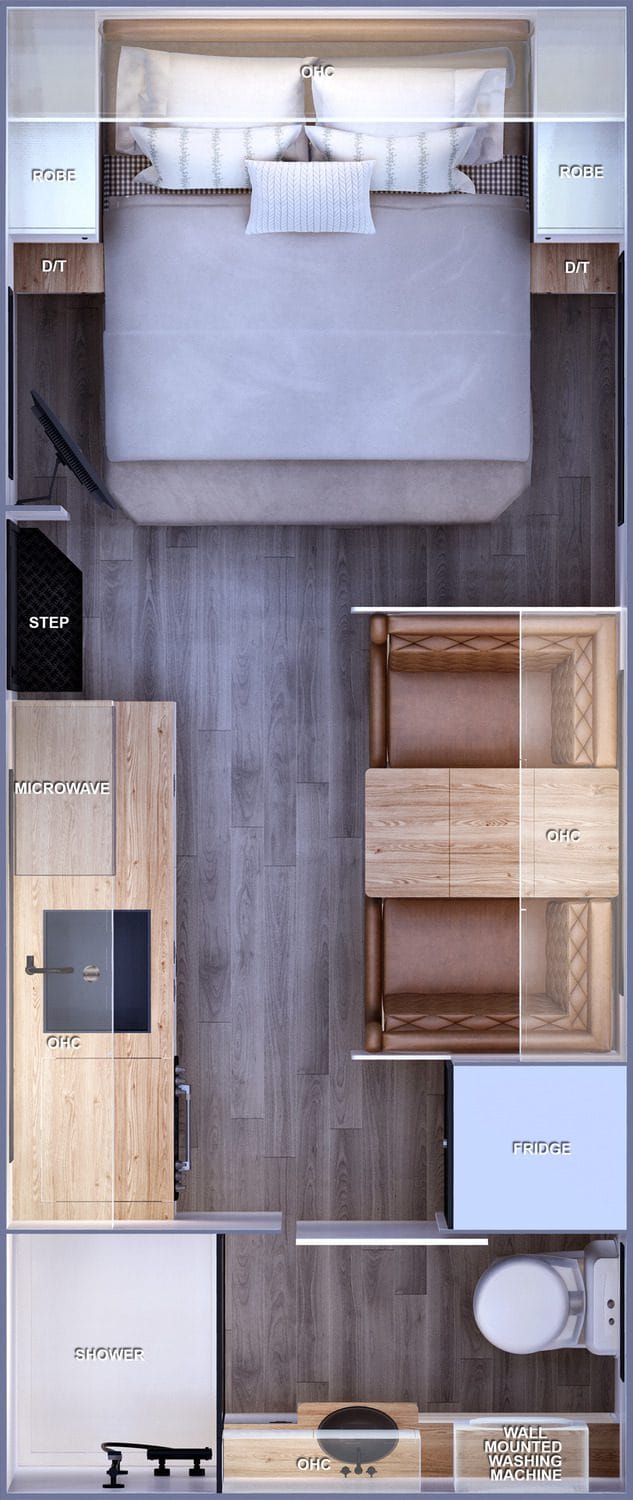

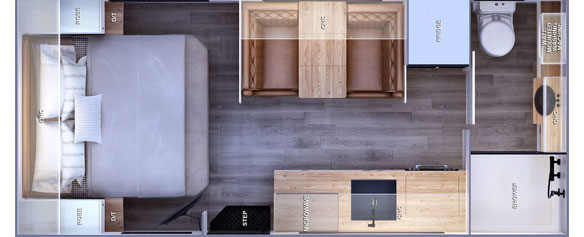

18′ Front Door (18FD)
