Designed for those who demand both adventure and comfort, the Masterpiece Caravans XTM offers a compact yet powerful off-road caravan experience. Built tough with a custom chassis, high-quality components, and advanced features, the XTM is perfect for off-grid explorers seeking luxury in the wild. Whether you’re navigating rugged terrain or relaxing at a remote campsite, this caravan ensures your journey is as comfortable as it is thrilling.
Chassis Specifications
Interior Specifications
Exterior specifications
Electrical Specifications
Plumbing Specifications
Chassis Specifications
- Custom Designed and Engineered Australian Manufactured Chassis using 450 grade Zinc Galvanised Australian Steel
- 3T TerraGlide Independent Suspension
- 6” A-Frame
- 4” Main Frame
- 4” Continuous Chassis Raiser
- 12” Electric Drum Brakes
- 16” Alloy Wheels
- Cooper Rugged Trek Tyres 265/75/R16
- DO-35 Off-Road Coupling
- Jockey Wheel
- 300mm A-Frame Extension
- Dual Toolboxes on A-Frame Vented with Slides on Bottom
- Mesh Stone Deflector
- 4 Arm Bumper Bar
- Spare Wheel & Tyre
- Single Aluminium Entry Step
- Firewood Cradle on Rear Bumper
- 2 Jerry Can Holders
- Skid Rails and Recovery Points on Rear
- Jack Supplied
Interior Specifications
- Premium Vinyl Flooring
- Acrylic or Laminate Splashbacks
- Quality Upholstery with Rebated Foot Stools
- Full Height Bedhead
- Magazine Pocket
- Double Sided Premium Acrylic Doors with Piano Hinges and Gas Struts
- Premium Benchtops
- Pillowtop Mattress
- Full Extension Draw Runners
- Italian Made Cupboard Handles
- Concealed Handles for Overhead Cupboards
- Ensuite with Backlit Mirror
- 2x Towel Rail
- Toilet Roll Holder
- Towel Ring
Exterior specifications
- 3mm Composite Panel – Front, Back & Sides
- Custom RavenCoat Checkerplate
- Fibreglass One-Piece Roof
- V-Flex Tunnelboot Lining
- Fully Sealed External Hatch Doors
- Security Lock Entry Door
- Double Glazed Windows with Split Windows in Bedroom
- Roll-Out Awning
- Picnic Table
- Powered Dust Reduction System
- Power Hatch with Rain Sensor Above Bed
- Roof Hatch 500mm x 700mm
- 2 × Power Hatches in Ensuite with Fans
- Rear Storage Hatch
- Sailtrack on Roadside
- LED Grab Handle at Entry Door
Electrical Specifications
- VICTRON Battery Management System with 2000W Inverter and 80 AMP Charger
- 300 Amp Lithium Batteries
- 2 x 30 AMP VICTRON MPPT Solar Regulators
- 500 Watt Solar Panels
- 30 Amp DC/DC VICTRON Charger
- VICTRON Cerbo Smart Control System
- VICTRON GX 7 Inch Smart Display Screen
- Fusion Internal Entertainment System
- Fusion External Panel Entertainment System
- 32” Smart TV with HD Antenna
- External Entertainment Hatch
- External Annexe Lights with Yellow Light Bug Feature
- Work Lights Front and Rear
- Dual Reverse Camera with Car Kit
- 2 × 12V Fans in Bedroom
- Dual USB/USB-C Points Throughout
- Double Powerpoints Throughout
- Downlights Throughout
- Reading Lights Throughout
- Anderson Plug at Batteries for Portable Solar
- 12 Pin Flat Tow Plug
- Starlink Provision
Plumbing Specifications
- 2 x 95 Ltr Water Tanks with Pump
- 1 x 100 Ltr Grey Water Tank
- 2 × 9 kg Gas Bottles
- Mains Pressure Inlet
- Water Tap On A-Frame
- Traditional Water Fillers
- 3 Way Filter Tap in Kitchen
- Water Filter In Kitchen
- External Shower Hot/Cold Water
- Ceramic Bowl Toilet
- Plumbing Protection on All Underbody Piping
- Gas Bayonet
- Premium Sinks and Basins
- High Quality Tapware and Shower Fittings
- One-Piece Fibreglass Shower
Exterior

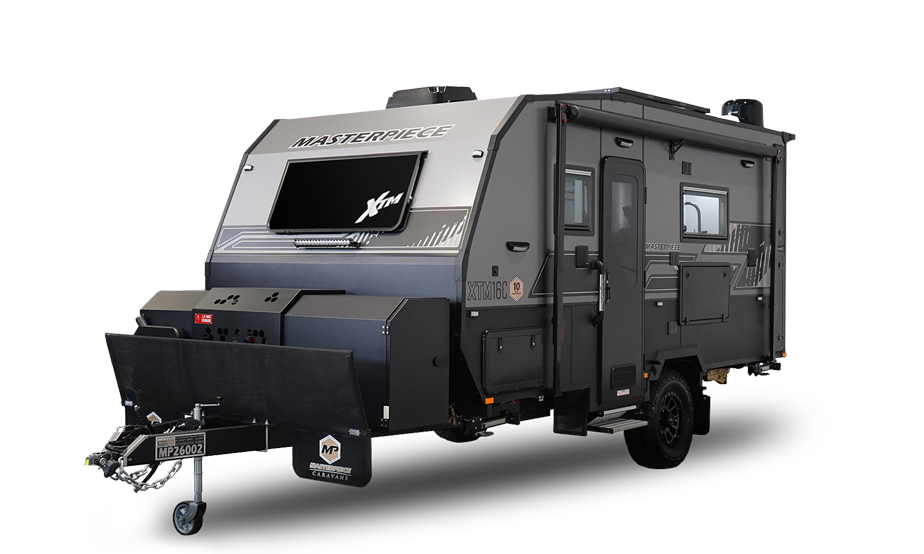

The Masterpiece Caravans XTM model is built for adventure with a rugged and resilient exterior designed to withstand the harshest conditions. Its custom-designed Australian-manufactured chassis, constructed from 450-grade zinc-galvanized steel, supports the robust 3T TerraGlide Independent Suspension system, ensuring a smooth ride over any terrain. The exterior is finished with 3mm composite panels, checkerplate, and a one-piece fiberglass roof for durability and weather resistance. The caravan features a range of high-end components, including a mesh stone deflector, roll-out awning, external storage hatch, and a powered dust reduction system to protect against the elements. LED lighting and a secure, lockable entry door enhance convenience and security, while the off-road capabilities are complemented by heavy-duty wheels, a DO-35 off-road coupling, and skid rails.
interior
Inside, the XTM is a sanctuary of comfort and luxury, with a focus on high-end amenities and reliable plumbing systems. The caravan is equipped with premium vinyl flooring, high-quality upholstery with footstools, and stylish acrylic or laminate splashbacks, creating an inviting space. The fully functional kitchen includes a hybrid hob with induction and gas burners, a convection microwave, and a Dometic compressor fridge, while the ensuite features a backlit mirror, towel rails, and a one-piece fiberglass shower. Plumbing is a standout, with two 95L water tanks, a 100L grey water tank, and a hot/cold external shower, ensuring ample water supply for all needs. The kitchen is equipped with a three-way filter tap and water filter, while a ceramic bowl toilet and high-quality tapware in the ensuite provide exceptional comfort. The caravan also includes a premium Truma Aventa reverse-cycle A/C, ensuring a comfortable environment year-round. With the advanced VICTRON battery management system, solar panels, and a smart display, the XTM combines both comfort and cutting-edge technology for a complete off-grid experience.

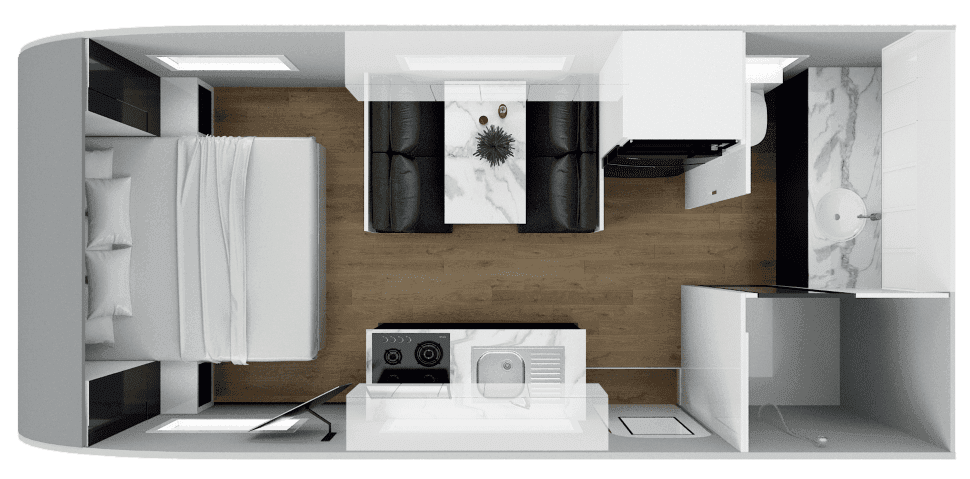

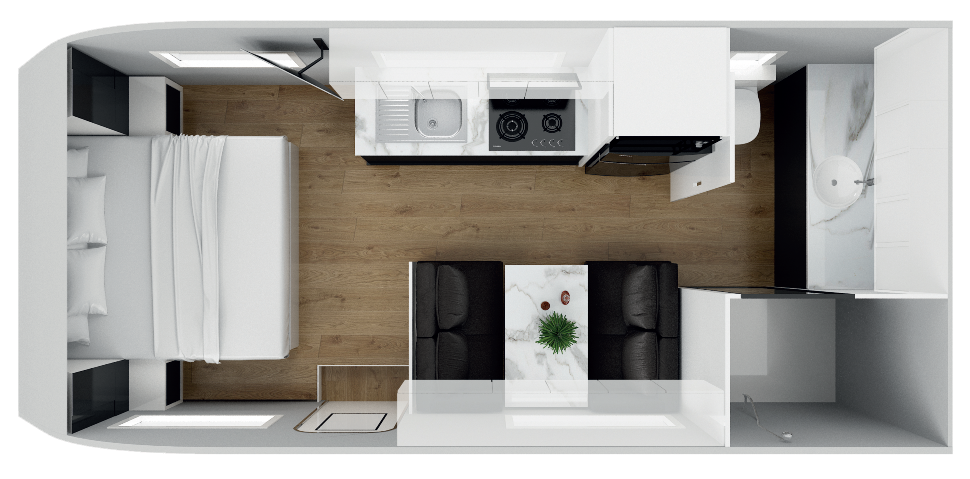

Floor Plans

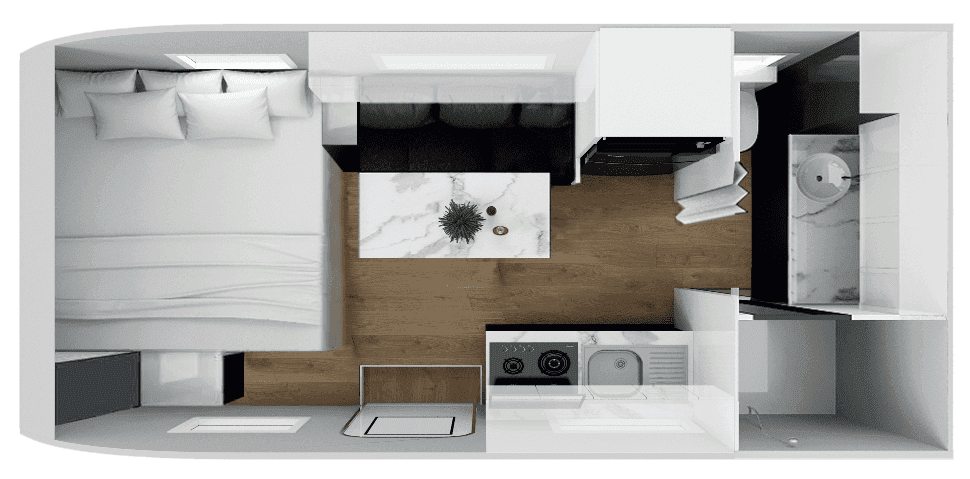

16C – XTM

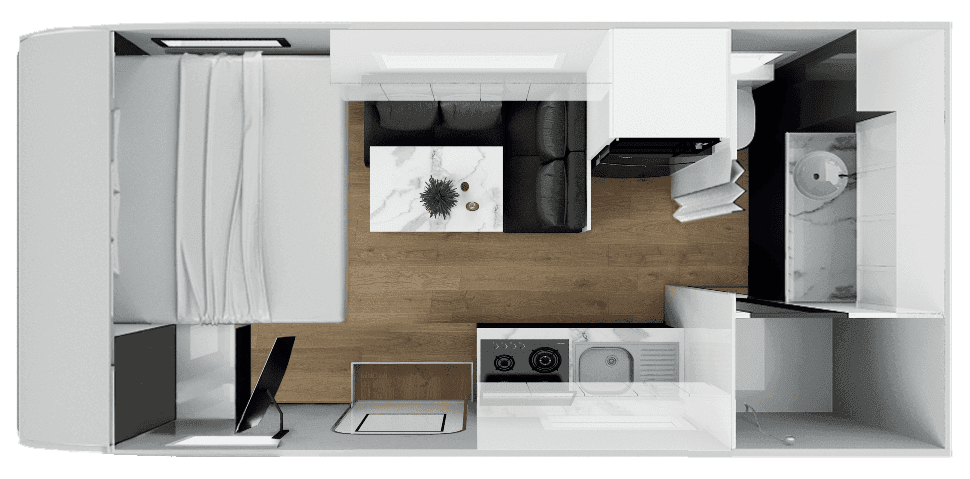

17C – XTM
