A blown fuse or faulty isolator switch is one of the most common — and most fixable — electrical issues in a caravan. When power suddenly cuts out, lights stop working, or appliances won’t turn on, the cause is often simple.
Replacing a fuse or isolator switch is well within the capability of most caravan owners, as long as it’s done safely and methodically.
This guide walks you through identifying the problem, replacing the component correctly, and knowing when to stop and call a professional.
What You’ll Learn
- The difference between caravan fuses and isolator switches
- How to identify a blown fuse or faulty isolator
- Step-by-step replacement guidance
- Safety checks before restoring power
This guide is suitable for all caravan owners, including beginners.
Fuses vs Isolator Switches: What’s the Difference?
Caravan Fuses
Fuses protect individual circuits by breaking the circuit when current exceeds safe levels. Common examples include:
- Interior lighting
- Water pump
- USB outlets
- Fans
Isolator Switches
Isolator switches allow you to manually disconnect power, usually for:
- Battery isolation during storage
- Safety during maintenance
Both are safety devices — and both fail occasionally.

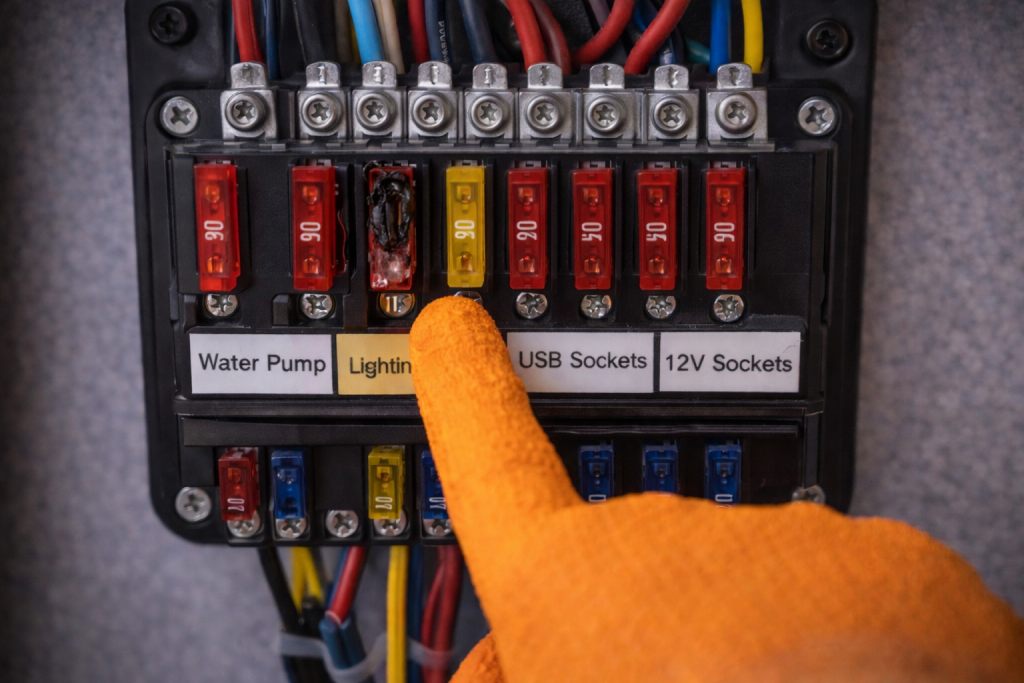

When Does a Fuse or Isolator Need Replacing?
Replace a fuse if:
- The metal strip inside is broken
- The fuse looks burnt or blackened
- Power is lost to a specific circuit
Replace an isolator switch if:
- Power cuts in and out when switched
- The switch feels loose or overheats
- No power flows even when switched ON
Safety First: Before You Start
Before replacing anything:
- Turn off all power sources
- Disconnect 240V mains
- Switch off solar input (if possible)
- Isolate the battery
⚠️ Never replace fuses or switches while the system is live.
Step-by-Step: How to Replace a Caravan Fuse
1. Identify the Correct Fuse
Use the fuse box label to identify the affected circuit.

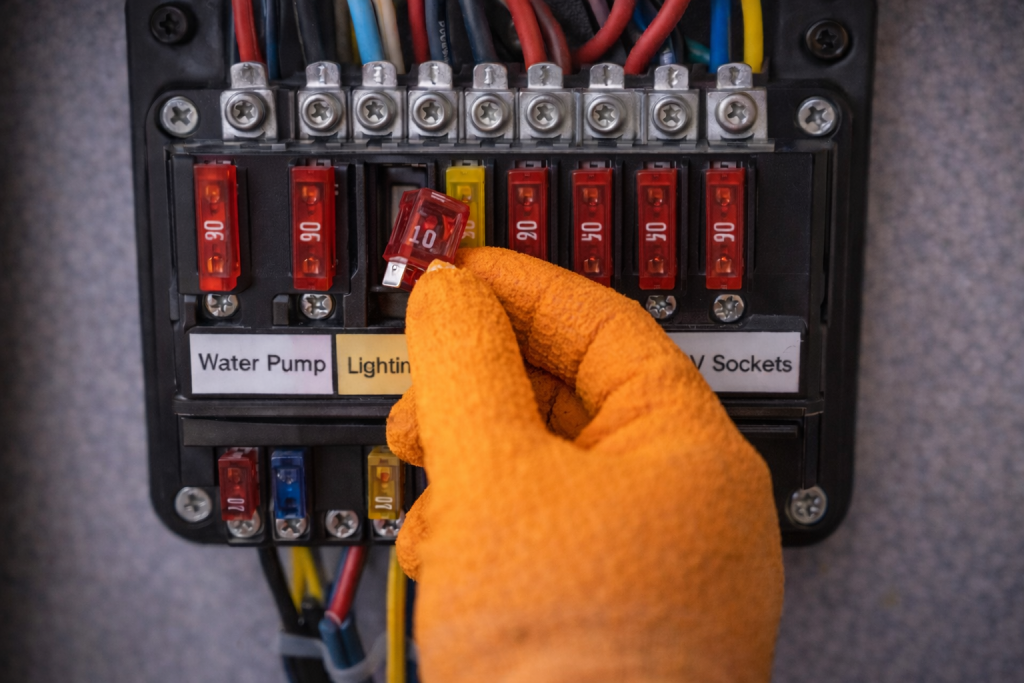

2. Remove the Blown Fuse
Use a fuse puller or fingers. Inspect the fuse to confirm failure.
3. Replace With the Correct Rating
Always replace with:
- The same amperage rating
- The same fuse type
Never “upgrade” a fuse rating — this risks wiring damage or fire.
Step-by-Step: How to Replace a Caravan Isolator Switch
4. Confirm the Isolator Is the Fault
Test continuity or observe symptoms before replacing.

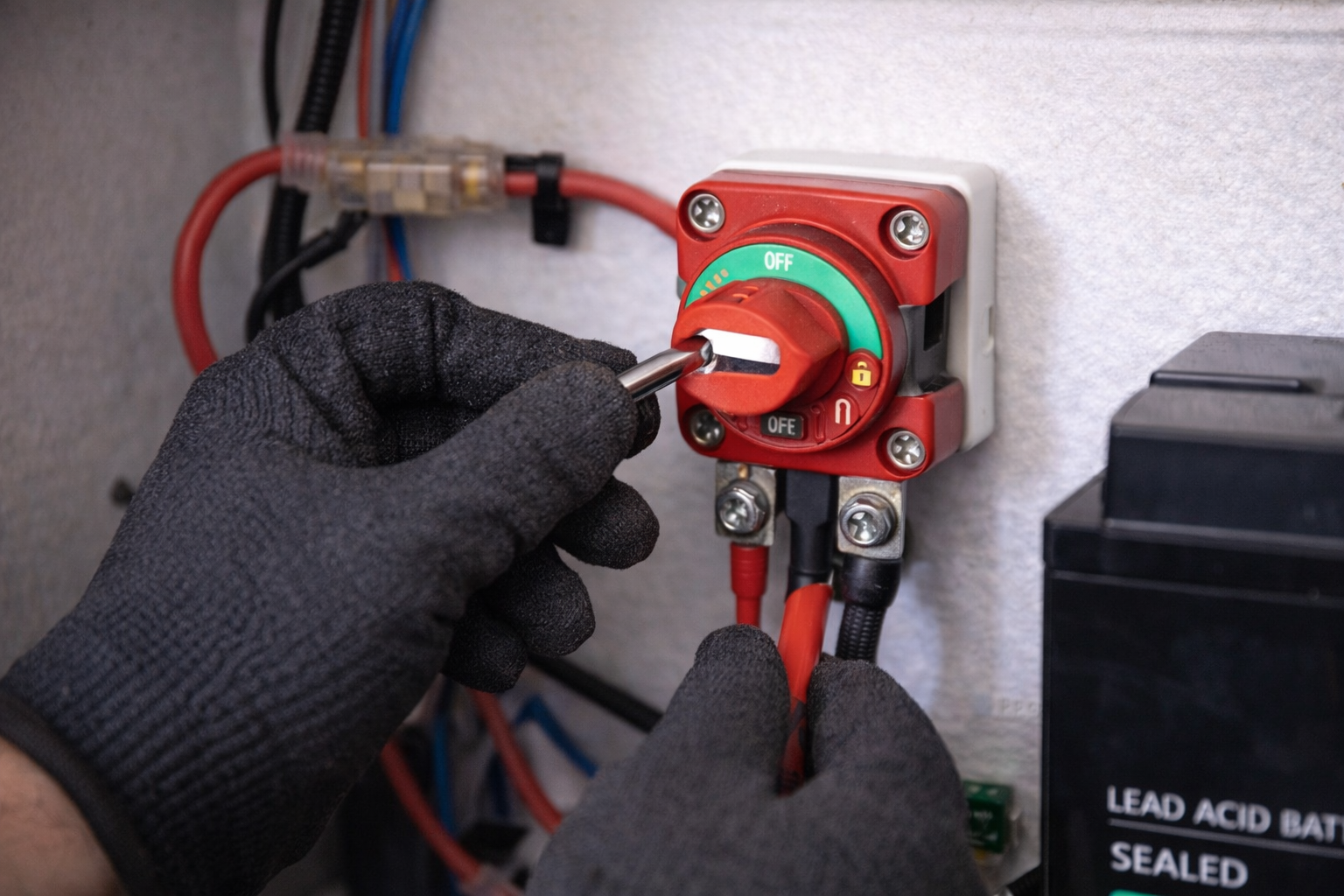

5. Remove the Old Isolator
Label wires if needed. Take photos before disconnecting.
6. Install the New Isolator Switch
Reconnect wiring exactly as before. Ensure terminals are tight but not overtightened.

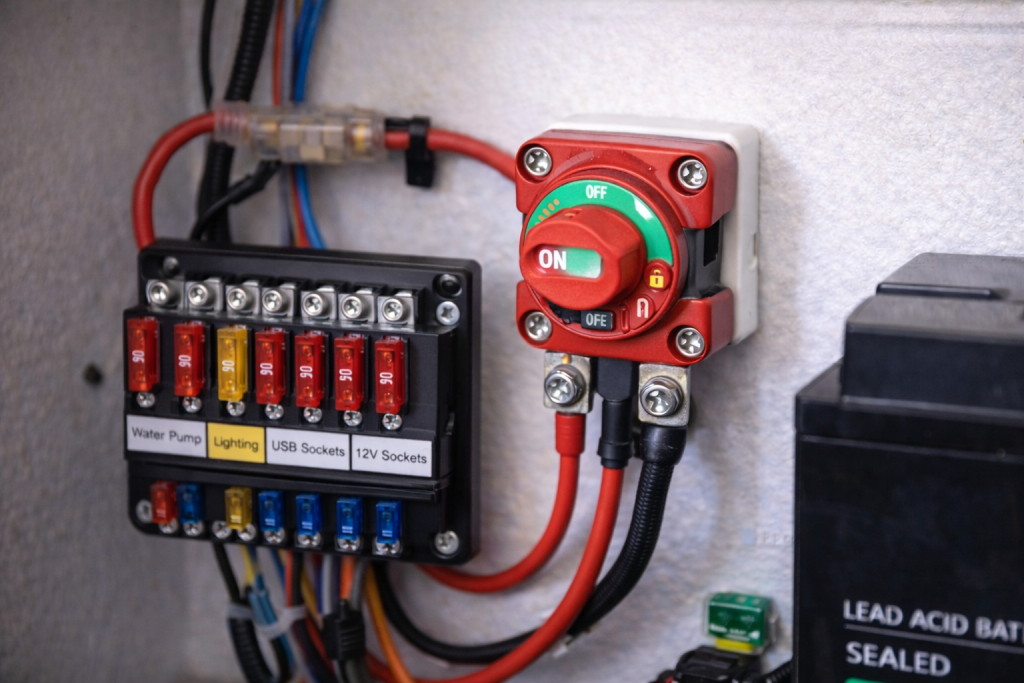

Restore Power and Test
Once replaced:
- Reconnect the battery
- Restore solar and 240V
- Test affected circuits
- Monitor for heat or smell
If problems persist, stop and reassess.
Common Mistakes to Avoid
- Using the wrong fuse rating
- Replacing fuses repeatedly without fixing the cause
- Leaving loose connections
- Ignoring signs of overheating
Fuses blowing repeatedly means there’s an underlying issue.
When to Call a Professional
Book a service if:
- Fuses keep blowing
- You see melted wiring or insulation
- Isolator switch overheats
- You’re unsure about wiring layout
Electrical safety always comes first.
Key Takeaways
- Fuses and isolators are designed to fail safely
- Replacement is simple if done correctly
- Correct ratings matter
- Repeated failures mean deeper issues
