Tungsten
Tuff
The Tungsten Tuff range is our Semi-Off Road entry and includes our Fully TIG Welded Alloy Frame, Fibreglass Inner Walls, Fibreglass One Piece Roof and Durable One Piece Fibreglass Floor.
Chassis Specifications
Interior Specifications
Exterior specifications
Electrical Specifications
Plumbing Specifications
Chassis Specifications
- 6” Sup Gal RHS steel chassis & A-Frame
- DO35 off-road coupling
- Tandem axle
- 3.3t independent coil shock absorber suspension
- 16” Anodised alloy wheels
- 245/75 R16 off road tyres
- 10″ Electric brakes
- Urban mud flaps
- Manutec quick release drop down stabilisers legs
- 1 x Spare wheel rear mounted
- Heavy-duty rear galvanised bumper bar with 3 arm
- Jockey wheel, center mounted & removable
- Jack
- A-Frame extension
- Tool box with external generator or BBQ slides
- 12 Pin flat trailer connection
- Anderson plug
- Breakaway system
- 2 x 9 Litre gas bottles in tool box
Interior Specifications
- High gloss contemporary CNC furniture
- Cupboard doors, double sided &edged
- Large selection of colours & quality fabrics
- Stylish positive locking door latches
- OHC counter sunk hinges & gas struts
- Post formed or square edge bench tops
- Full splash back in acrylics or laminate
- Raised roof with higher bench tops
- Metal frame draw runners with soft close
- Pull out pantry (on some models)
- 6’2″ Queen Mattress with innerspring & pillow top
- Gas strut assisted lift up bed frame
- Full upholstery bed head
- Dual high-density foam seating with embodied head rest
- Slide out drawers with foot rest
- Plenty of storage with under seat access
- Double glazed windows with pull down mesh screens & blackout blinds to all windows
- Fire extinguisher / smoke detector
- Toilet holder & towel holder
- Full width mirror in en-suite
- Open pivot door on shower
- En-suite sliding door with foot lock & wall hatch
- High wearing vinyl flooring
- Tri-fold table or L–shape
- Telescope table leg for club lounge
- Pressurised cabin hatch
- Recessed Cook Top
Exterior specifications
- Tig welded alloy frame
- Fibreglass inner walls & ceiling
- 1-Piece fibreglass roof
- 1-Piece fibreglass floor
- Probond panelling, composite exterior panels
- Insulated walls and roof with Sarking
- Grab handle with push LED light
- Pull out step
- Roll-out awning & support cradle
- 600mm Checker Plate all the way around & checker plate wheel spats
- Fold down picnic table
- Lockable tunnel boot with light
- Slim line reflectors
- Satin black stainless-steel grab handles front &back
- J-mould surround (black)
- Stainless mesh security door with triple lock entry & fly screen
- External TV/USB/12 volt outlets
- Front and both sides with 22 ‘CRE bar light with adjustable mountings
- 2 x Annexe light 250mm above boot
- 240V 15Amp Inlet & 240V 10Amp Outlet
- All LED External Lighting
Electrical Specifications
- Ibis reverse cycle air conditioning
- Built in microwave
- Dometic compressor refrigerator
- Range hood recessed (external vent)
- Touch screen Bluetooth, CD, Radio, DVD, MP3 and USB player
- 24″ TV with built in DVD player on TV arm
- Winegard TV Antenna
- 12-volt hatches with fan and led lighting in en-suite & shower
- 2 x Hatches with led surrounds internally
- Premium led down lights
- Cubby holes with USB and Power Point & Under counter lighting switch for bathroom
- Strip lights above vanity & kitchen sink
- Reading lights over bed & seating area (If Bunks – one in each)
- Double power point in kitchen
- 12 v, 240 v double p/p, USB in seating area
- Checker plate entry step with LED strip
- Isolation switch entry door
- 2x Internal & 2x External LED speakers
- BM35PRO HA Battery Management System and Odyssey Monitor (Integrated MPPT Solar Controller)
Plumbing Specifications
- 2 x 95 litre water tanks & protectors
- 23 litre gas/electric hot water service
- 3 X Gas & 1 X 240V hotplates with grill
- Washing machine
- External gas bayonet
- 2 x lockable water fillers
- 2 x 9kg gas bottles
- A-Frame Tap with Protection
- External shower hot &cold
- 12v Flow jet water pump
- Digital water tank gauge / level indicator
- Premium tapware & water filter
- Stainless steel sink
- Adjustable shower head function
- Fully moulded shower to celling
- Ceramic vanity basin with mixer
- Dometic swivel toilet with ceramic inlay
- Mains pressure water inlet
- Waste water outlet
- One way valve
Exterior
Fitted with 16” off-road tyres and wheels & 3.3t Independent Coil and Shock Suspension
Couple this together with a Full Box RHS Steel Chassis and this is as tough as you will find on a semi-off road plat-form. Available in both touring and family floorplans this range is sure to please the most discerning traveller.

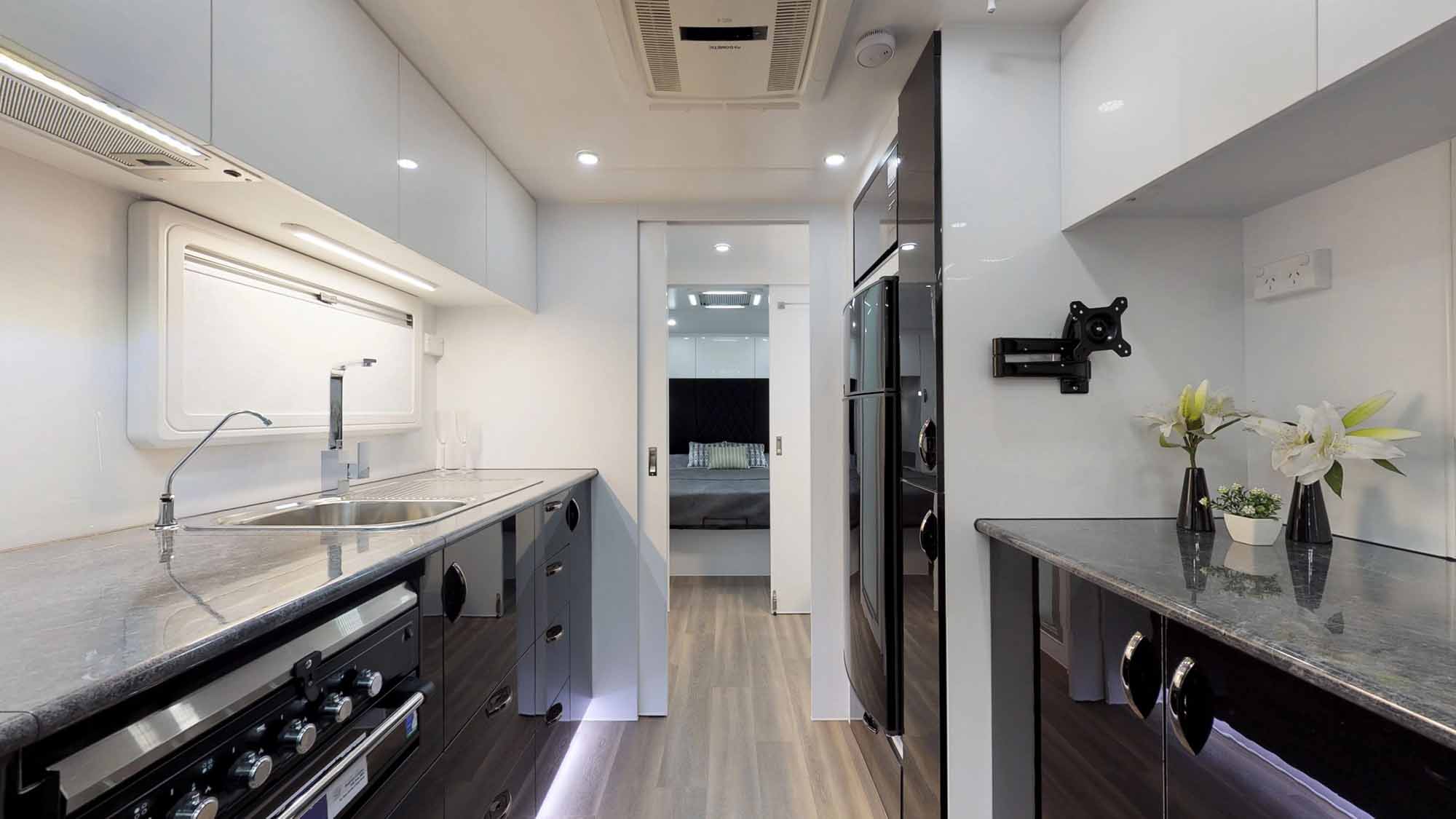

interior
Take the urban into the outback.

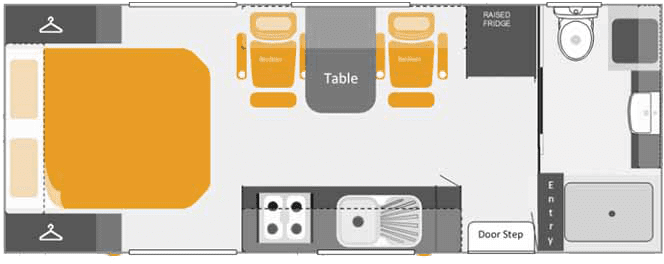

Floorplans
